High Efficiency & Energy Saving Raymond Mill

Product Details

Product Description

Product Description

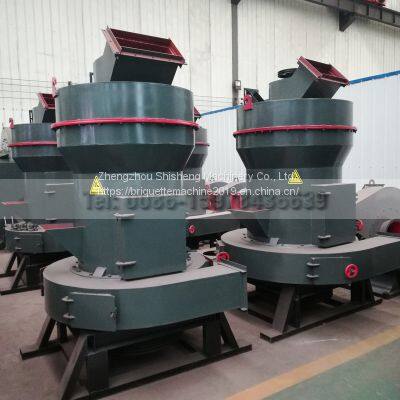

High Efficiency & Energy Saving Raymond Mill
High Efficiency & Energy Saving Raymond Mill Introduction:
This High Efficiency & Energy Saving Raymond Mill is widely used in barite, calcite, carborundum, silicon carbide, potassium feldspar, marble, limestone, dolomite, fluorite, lime, titanium dioxide, activated carbon, bentonite, kaolin, white cement, calcium carbonate, gypsum, glass, manganese, titanium, refractory materials, insulation materials, coal gangue, carbon black, coal, clay, talc, shell, resin, ferric oxide, hong huang dan, quartz, petroleum coke with hardness less than 7 humidity, in more than 500 in charge of flammable and explosive materials powder processing under 6%, the product size can be adjusted in the range of 60-325 mesh, part of the material up to 1000 mesh.
High Efficiency & Energy Saving Raymond Mill Technical Parameter:

Model	Roller Number(pcs)	Mill Roll Size(R*Hmm)	Size and Height of Grinding Ring(mm)	Maximum Feed Length(mm)	Product Granularity(mm)	Capacity(t/h)	Motor Power(kw)
3R1510	3	150*100	480*100	15	0.2-0.044	0.3-1	7.5
3R2615	3	260*150	780*150	20	0.2-0.044	1-1.5	18.5
3R2715	3	270*150	830*150	20	0.2-0.044	1-3	22
3R3016	3	300*160	880*160	20	0.2-0.044	1-4	30
3R3018	3	300*180	990*180	20	0.2-0.044	3-5	30
4R3216	4	320*160	1073*160	25	0.2-0.044	2-6	37
4R3220	4	320*200	1075*200	25	0.2-0.044	2-7	37
5R4119	5	410*190	1300*190	35	0.2-0.044	2-8.5	75
5R4121	5	410*210	1300*210	35	0.2-0.044	3-9	75
5R4125	5	410*250	1300*250	35	0.2-0.044	5-10	75
6R4528	6	450*280	1600*280	40	0.2-0.044	3-16	132

High Efficiency & Energy Saving Raymond Mill
Company Profile
Zhengzhou Shisheng Machinery Co., Ltd.
The factory is located in Zhengzhou Economic and Technological Industrial Development Zone, covering an area of more than 130 acres. It has two standardized heavy-duty industrial plants with 10,000 square meters, more than 150 large and medium-sized metal processing, riveting and assembly equipment, and more than 130 online employees, including There are more than 30 management cadres and engineering and technical personnel with intermediate and senior titles. The company has successively introduced advanced technologies and processes from the United States, Germany, Japan, Australia and other countries, established an internationally advanced production line and a first-class modern testing base, and established a sand and gravel machine research room, a grinding machine research room, and a research room for mineral processing equipment room. The company has rapidly grown into a production and sales base of mining machinery in China with scientific management methods, manufacturing processes for excellence, and innovative manufacturing concepts. Do your best to continuously improve and make it increasingly international.
