| US$9,530.00-12,350.00 | 1 Set (MOQ) |
| MODELS | | |

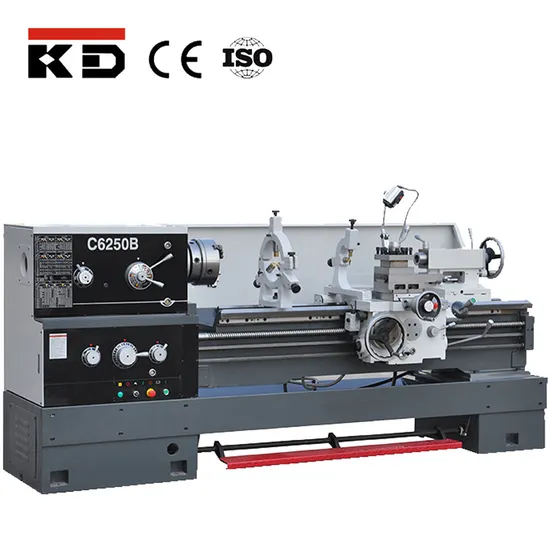

| CAPACITY | C6250B | C6266B |
| Max.swing over bed | Ф500mm | Ф660mm |
| Max.swing over carriage | Ф260mm | Ф420mm |
| Max. swing over gap | Ф710mm | Ф870mm |
| Distance between centers | 1000/1500/2000/3000mm | |
| Bed width | 405mm | |
| SPINDLE | | |
| Spindle nose | D8 | |
| Spindle bore | Ф80mm | |
| Taper bore of spindle | M.T.NO.7 | |
| Steps of spindle speed | 24 | |
| Range of spindle speed | 9~1600rpm | |
| FEED | | |
| Range of longitudinal feeds | 0.063~6.43 (0.0023″~0.2392″)mm | |
| Range of cross feeds | 0.027~2.73(0.0010″~0.1016″)mm | |
| RAPID TRAVEL | | |
| Longitudinal | 4500mm/min | |
| Cross | 1900mm/min | |
| THREAD RANGE/ NUMBER | | |
| Metric pitch threads | 1~224mm/ 46 | |
| Whit-worth threads | 28~1/8 TPI/ 26 | |
| Module threads | 0.5~112mm/ 42 | |
| D.P.Threads | 56~1/4 DP/ 45 | |
| TAILSTOCK SLEEVE | | |
| Taper bore | M.T.NO.5 | |
| Max travel | 150(5~29/32″)mm | |
| External diameter | Ф75(2~61/64″)mm | |
| OTHERS | | |
| Size of tool shank | 25×25mm | |
| Max travel of cross slide | 360mm | |
| Max travel of top slide | 145mm | |
| Main motor power | 7.5kw (10HP) | |
| Overall dimensions(L×W×H) | (2500/3000/3500/4500)×900×1259mm | |
| Net weight | 2750/3000/3250/3600kg | 3000/3200/3400/3900kg |
