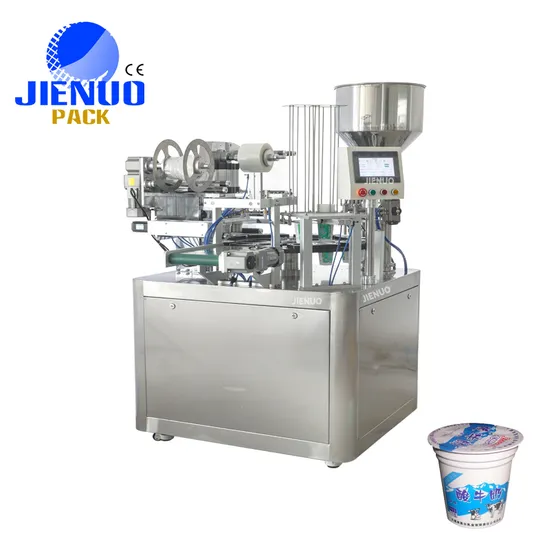

Automatic Jelly Gelato Calippo Ice Cream Jam Sauce Milk Cup Filling and Sealing Machine

Product Description

Product description:
Automatic cup filling and sealing machine is mainly used for cups, bowls, boxes, barrels and containers specially shaped filling and sealing, no special requirements on the material, liquid, paste, granules, so you can mix materials.
Suitable for jelly, juice, jam, yogurt, ice cream, salad, pudding, condiments, beverages, chocolate, mineral water and other food filling and sealing.

Pre-cut foil sealing:
1. automatic cup dropping (cups should be stacked, but can't stick together)
2. automatic filling
3. automatic foil suck
4. automatic double sealing
5. auto cup exiting
Roll film sealing:
1. auto cup dropping (cups should be stacked, but can't stick together)
2. auto filling
3. automatic double sealing
4. auto film cutting
5. wasted film recycling
6. auto cup exiting
7. photocell
8. date printing
Features:
1. Use touch screen to set parameters, support multiple languages, easy to operate.
2. Stable operation, filling quantity and filling speed can be adjusted arbitrarily.
3. Intelligent PLC control system, reliable operation of the machine.
4. PID independent control of temperature, more suitable for different packaging material.
5. Multiple automatic alarming functions, maximum deduction the loss.
6. New-style turntable design, small footprint, easy to detect and maintain.
7. Convenient to change products with different specifications.

Using piston type quantitative filling, accurate measurement, 304 stainless steel material is in line with food hygiene standards. Adopt PID intelligent constant temperature heat sealing to heat and seal the sealing film. The sealing is tight and not easy to leak.

Technical Parameter:

Model	Automatic rotary cup filling and sealing machine
Packing Speed	2000-2400cups per hour
Voltage	220V/380V
Machine Power	1KW
Heat Power	2.5KW
Filling Range	According to cup volume
Air source	0.5MPa-0.75 MPa
Dimension	1200*1050*1950 mm
Machine Weight	About 380kg

Hot products:
Click the picture to view details!

Coffee Capsule Filling Machine	Horizontal Cup Sealing Machine	Horizontal Flow Wrapping Machine
Vertical Bag Sealing Machine	Coffee Capsule Filling Machine	Horizontal Cup Sealing Machine

Company profile:
Wenzhou Jienuo Machinery & Technology Co., Ltd. is a manufacturing and trading company which is mainly engaged in development, production and related services for pharmaceutical industry, food industry, cosmetics industry, stationery industry, etc.
Packing & Delivery:
Standard export case for cup filling machine
Our service:
1. Manules / Videos of machine installation, adjustment, setting, maintenance are available for you.
2. If any problems happend that you can not find out the solutions, 24 hours phone call or online face to face communication available.
3. Our engineers & technician can be sent to your countries for services if you agree to pay the expenditure.
4. Providing life-long service for customers! No worry after purchasing about service. All of our machine has 1 year warranty of machine. During the warranty year, we provide free maintenance for non-deliberate damage. The machine delivered to the buyer from the date of the warranty period.

---
