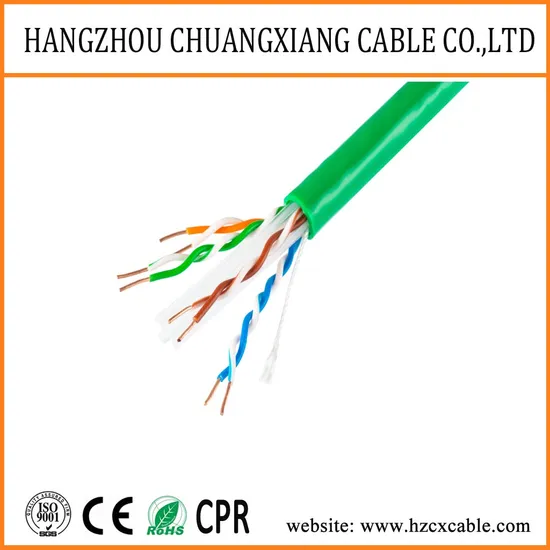

China Maket LAN Cable UTP STP FTP SFTP Cable 305meter CAT6 Twisted-Pair Cable Network Cable Copper Wire Computer Cable

Product Description

Material Instruction:
1.CCA or 24AWG Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE;
4.Eco-friendly PVC/LSZH Jacket , high-temperature resistance,long working life.

Type	UTP CAT6
Conductor	23/24AWG CU/CCA
Insulation	1.03+/-0.2mm HDPE
Total number of insulated conductor	8, twisted in 4 pairs
Color code	white-blue/blue,white-orange/orange, white-green/green,white-brown/brown
Center cross	yes
Drain wire	/
Sheath	6.0+/-0.2mm PVC/PE
OEM is available

Impedance 1.0-100.0MHz (ohms)	100±15
D.C, Resistance @20ºC(ohms/km)	≤9.5
D.C. Resistance Unbalance(%)	Max 2.5
Insulation Resistance	>5000MΩ*KM
Rated Temperature	70ºC

Frequency (MHz)	Return loss (dB)	Attenuation (dB/100m)	NEXT (dB)	FEXT (dB)
1	20.00	2.10	64	63.8
4	23.01	4.30	55	51.7
10	25.00	6.60	49	43.8
16	25.00	8.20	46	39.7
20	25.00	9.20	44	37.7
31.25	23.64	11.80	42	33.8
62	21.54	17.10	37	27.6
100	20.11	22.00	34	23.6

	Delivery Time	Payment Terms	Shipping Method
Samle Order	1-3days	100% in Advance	By Air
LCL Order	3-25days	30% Deposit and the Balance Paid Before Shipment Or Against B/L Copy	By Air Or By Sea
FCL Order	25-45days		By Air Or By Sea

Linan Chuangxiang Cable Co., Ltd is a professional cable manufacturer in China,we have more than 11years in this line.
Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give best service to our clients
and the quality guarantee in every order.
Our products have been widely installed in Telecom companies and many distributors around the world,and we sincerely look for-
ward to woking with all clients from all over the world.
Our Main Products:
1,Optical Fiber Cable and Patch Cord
2.Lan and Network Cable and Patch Cord
3.Alarm Cable and Speaker Cable
4.Drop Wire and Telephone Cable
5.Communication Cable
6.Coaxial Cable
7.Electrical Wire and Power Cable
8.Telecom Accessory.
1. Are you the real manufacturer?
Yes. We are the real manufacturer, which is specialized in coaxial cable, lan cable and optical cable, etc.
2. Can you accept small order?
Yes, We support new project of our customers, and we know business is always from small order.
3. What is your delivery time?
Usually within 30days after we received deposit.
4. What is your payment way?
T/T, L/C, it can be negotiated.
5. Can you supply customized products and logo?
Yes. We supply OEM&ODM service.
6, Could you supply door to door service?
Yes, by air or by express (DHL, FEDEX, TNT, EMS, SF7-10 days to your city)
7, What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. Generally speaking, we suggest you start inquiry
Three to four months before the date you would like to get the products at your Country.
If you were interested in our competitive products,pls call me,let's talk more!

---
