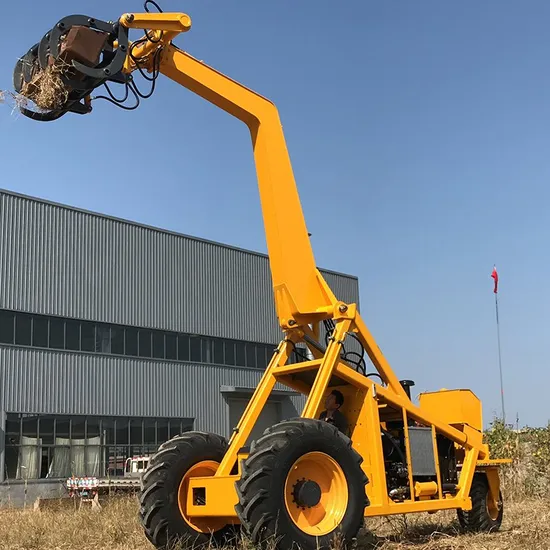

Hongyuan Factory Hy-4200 Tri Wheel Sugarcane Grab Loader Copy Bell 125 Model

Product Description

Overview
Products Description

Maximum Dumping Height	5000mm
Engine Model	4BT3.9-C125
Rated Power	125HP
Engine Brand	Cummins
Total Machine Weight	5020KG
Max, Grab Capacity	600KG
Working Efficiency	1000kg/min
Hydraulic System Working Pressure	20Mpa
Maximum Flux	63ml/r/63 ml/r
Slope	25%
Maximum Hauling Force	29KN
Walking Speed	≤7km/h
Overall Dimension(L×W×H)	5700*2200*2300mm
Min. Ground Clearance	533mm
Tread	1780mm
Wheelbase	3062mm
Tyre Model	18.4-30(Front dual)
	400-60-15.5(Rear one)

Company Profile
Certifications
FAQ
Q:All Of Hongyuan Wheel Loader Has CE Certification?
A:Yes.They all Have CE Certications.
Q:What Products Dose Hongyuan Machinery Company Has?
A:We Are Mainly Specializing In Producting and Exporting Of Wheel Loader From 0.6 Ton to 5 Ton.Also We Focus On Export Other Machine Like Offroad Forklift, Site Dumper, Backhoe Loader, Telescopic loader, Sugarcane machine etc. Agricultural and Enginnering Machinery.
Q:Dose the Hongyuan Machinery Has Their Own Factory?
A:Yes,We Have Our Own Production Workshop and Experienced Engineers In Qingzhou Hongyuan Factory. More Products Can Be Developed and Improved According to Our Customers' Requirements.
Q:Dose the Hongyuan Machinery Has Good Service?
A:Yes,of course. We Have a Professional Sale and After-Sales Service Team. We require all the personnel of the service must be within 24 back to all customer inquiries.

---
