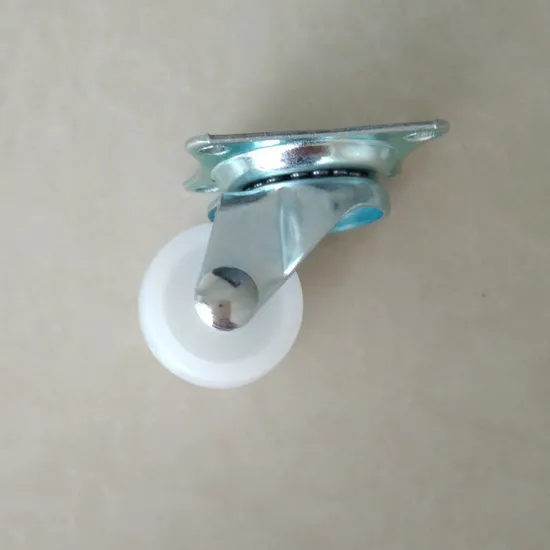

Industrial Nylon Castor 1" White Nylon Wheel for Table

US$0.135
50,000-99,999 Pieces
US$0.13
100,000+ Pieces

Basic Info.

Model NO.
BR230098
Brake
Without Brake
Bearing Type
Ball Bearing
Surface Treatment
Zinc Plated
Maximum Load
270
Specification
6, 6
Diameter
200
Thickness
3
Material
Nylon
Size
1
Colour
White
Finish
Zinc
Pack
Carton Box
Delivery
20
Payment
Tt
MOQ
50000
Transport Package
Carton Box
Trademark
OEM
Origin
China
HS Code
8302200000
Production Capacity
50000/Day

Product Description


Heavy duty industrial nylon castor, white nylon wheel
Speacification:
1.Item No. : 510S/NW150.50
2. Wheel material: nylon wheel
3. Wheel size:150x50mm (100X50mm,125x50mm, 200x50mm optional)
4.Bearing: ball bearing
5. Load capacity: 700kg
6. Bracket: pressed steel, zinc plated,double ballrace swivel head
Optional type and size with detail parameters as below:
Swivel caster
Item No.: Wheel
size
(mm)		 Total
height
(mm)		 Swivel
radius
(mm)		 Top
plate
size
(mm)		 Bolt
hole
spacing
(mm)		 Bolt
hole
(mm)		 Yoke
(mm)		 Load
capacity
(kg)
510S/NW100.50 100x50 142 35 114x110x6 85x72 19x10 62x6 500
510S/NW125.50 125x50 164 39 114x110x6 85x72 19x10 62x6 700
510S/NW150.50 150x50 190 45 114x110x6 85x72 19x10 62x6 700
510S/NW200.50 200x50 240 56 114x110x6 85x72 19x10 62x6 700

Rigid caster
Item No.: Wheel
size
(mm)		 Total
height
(mm)		 Top
plate
size
(mm)		 Bolt
hole
spacing
(mm)		 Bolt
hole
(mm)		 Yoke
(mm)		 Load
capacity
(kg)
510R/NW100.50 100x50 142 114x110x6 85x72 19x10 62x6 500
510R/NW125.50 125x50 164 114x110x6 85x72 19x10 62x6 700
510R/NW150.50 150x50 190 114x110x6 85x72 19x10 62x6 700
510R/NW200.50 200x50 240 114x110x6 85x72 19x10 62x6 700

Side brake caster
Item No.: Wheel
size
(mm)		 Total
height
(mm)		 Swivel
radius
(mm)		 Top
plate
size
(mm)		 Bolt
hole
spacing
(mm)		 Bolt
hole
(mm)		 Yoke
(mm)		 Load
capacity
(kg)
510B/NW100.50 100x50 142 35 114x110x6 85x72 19x10 62x6 500
510B/NW125.50 125x50 164 39 114x110x6 85x72 19x10 62x6 700
510B/NW150.50 150x50 190 45 114x110x6 85x72 19x10 62x6 700
510B/NW200.50 200x50 240 56 114x110x6 85x72 19x10 62x6 700

Double brake caster
Item No.: Wheel
size
(mm)		 Total
height
(mm)		 Swivel
radius
(mm)		 Top
plate
size
(mm)		 Bolt
hole
spacing
(mm)		 Bolt
hole
(mm)		 Yoke
(mm)		 Load
capacity
(kg)
510T/NW100.50 100x50 142 35 114x110x6 85x72 19x10 62x6 500
510T/NW125.50 125x50 164 39 114x110x6 85x72 19x10 62x6 700
510T/NW150.50 150x50 190 45 114x110x6 85x72 19x10 62x6 700
510T/NW200.50 200x50 240 56 114x110x6 85x72 19x10 62x6 700
