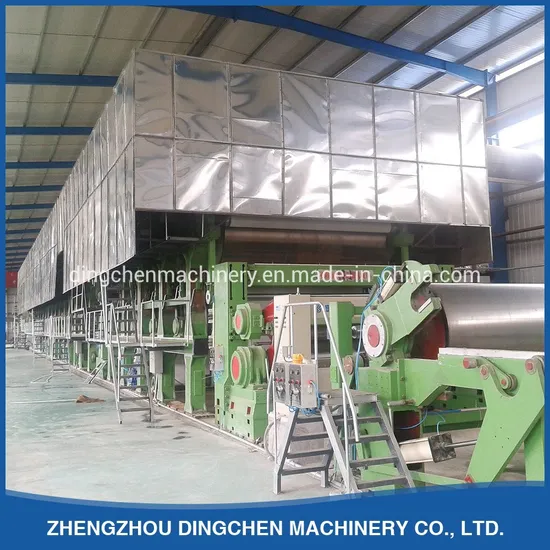

1092mm Kraft Paper High-Strength Corrugated Paper Making Machine

Product Description

1092mm Kraft Paper High-Strength Corrugated Paper Making Machine
Technical parameters
1. Output paper style: Kraft paper, cardboard;
2. Raw material: recycle paper;
3.Output paper weight: 140-260g/m2;
4. Net paper width: 1200mm;
5.Width of cylinder mould: 1450mm;
6. Capacity: 5T/D;
7 Rail gauge:1800mm;
8 Drive way: AC inverter speed, section drive;
Structure of main part:
1. Cylinder section: Ф1250mm×1450mm stainless steel cylinder mould 2 pcs, Ф350mm×1450mm couch roll 2 pcs, Ф350mm×1450mm reverse roll 1 pcs, coated by rubber, rubber hardness HSD 38ºC±2,reverse roll device.
2. Press section: Ф450mm×1450mm natural marble roll 1 pcs, Ф400mm×1450mm rubber roll 1 pcs,coated by rubber , rubber hardness HSD 90ºC±2,pneumatic loading device.
3. Dryer section:Ф1500mm×1450mm alloy dryer can 2pcs,Ф450mm×1450mm touch roll1 pcs,
Ф300mm×1450mm 2nd press roll 1 pcs, coated by rubber, Rubber hardness HSD 90ºC±2.,pneumatic loading device,2nd dryer can section with dry net device .
All Equipments:

NO.	Item	Qty(set)
1	1092mm kraft paper making machine	1
2	double layer exhausted hood of dryer can	1
3	Φ700mm axial-flow ventilator	1
4	Model-13 Roots vacuum pump	1
5	cylinder vat	2
6	Suction box	2
7	3 m3 high consistency hydrapulper	1
8	1.8m2 High frequency vibration screen	1
9	Φ380mm double disc pulp refiner	1
10	6 inch pulp pump	2
11	4 inch pulp pump	4
12	Φ700mmThruster	2
13	Model-600 sand remover	1group
14	IS125-100sand removing pump	1
15	8 m3 cylinder thickener	1
16	1092mm winding machine	1
17	1092mm rewinding machine	1
18	inverter control cabinet	1
19	1 ton boiler(burn coal)	1

Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.
Technical Advantage
1.Experienced producing team
2.Advanced technological strength
Product Advantage
1.Through the international authentication
2.The same material the most preferential price
3.A lot of varieties for the customer to choose
Service Advantage
1.Technical consultation
2.Project evaluation
3.Detailed design of factory
4.Installing and testing the whole production line
5.Training engineers and workers
6.Supplying spare parts for long time
