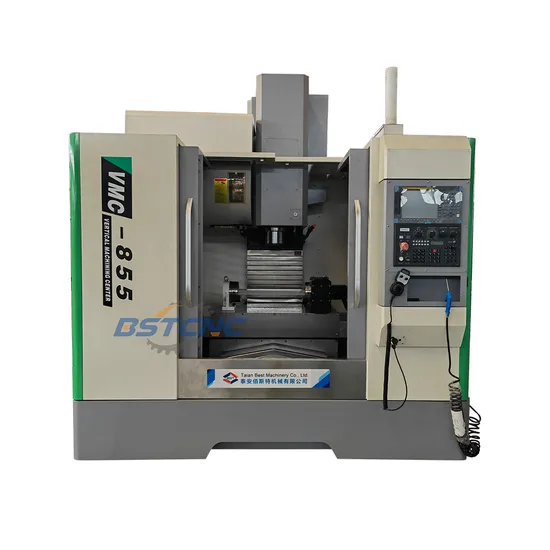

Vmc855 Vmc850 Three Axis 4th Axis CNC Turning Center CNC Milling Machine

Product Description

Product Description
VMC series is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining . It can also finish many working procedures like milling, drilling, tapping, boring etc.
Product Parameters

Items	VMC855 CNC MACHINING CENTER
Travel	X axis	850mm
	Y axis	550mm
	Z axis	550mm
	Spindle nose to table distance	100-650mm
	Spindle nose to column	571mm
Feed	max X rapid feed	32m/min
	max Y rapid feed	32m/min
	max Z rapid feed	32m/min
	Cutting feed	1-10000mm/min
	Torque	X:15N.m Y:15 N.m Z:23N.m
Table	Table size	1000×500mm
	Max load	600Kg
	T slot	5×18×90mm
Spindle	Type	Belt
	Speed	8000 rpm
	Spindle taper	BT40
	Main motor	7.5/11KW
Accuracy	Accuracy (JIS)	±0.005/300mm
	Repeatability (JIS)	±0.003mm
Other	Weight	5200 Kgs
	Machine Size	2600x2000x2200

Standard configuration: Optional :
-GSK218M/25i Control system; -Fanuc ,Siemens ,Mitsubishi,KND,HNC....
-Taiwan BT40-150-8000RPM spindle; -Chain chip conveyor ;
-Taiwan Arm Type Tool Changer 16T; -Spindle oil coolant;
-Taiwan Hiwin linear guideways and ball screw; -Taiwan TJR brand the 4th axis ;
-Three color alarm Lamp; -Renishaw tool setter TS27R ;
-Automatic Central Lubrication System and Cooling system; -Online measuring system OMP60;
- Full Enclosure Machine Guard; -Water out of the spindle center;

---
