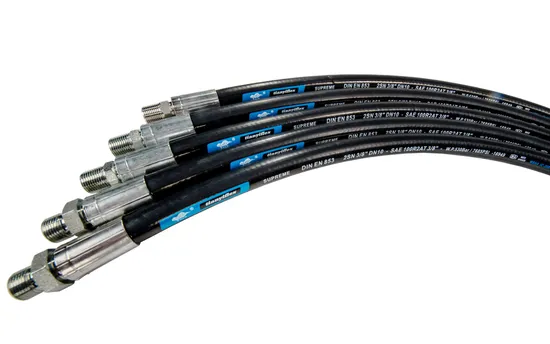

4sh / R10 Engineering Machinery Hydraulic Hose Rubber Hose

Product Description

Main applications: Super high pressure petroleum based hydraulic fluids transmit
Continuous service temperature range: -40°F/+212°F (-40ºC/+100ºC)
Max operating temperature: (Intermittent service) 250°F 121º Recommended fluids: Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oil, oil in aqueous emulsion, water
Inner Tube: Oil resistant synthetic rubber
Reinforcement: Four high tensile steel wire spiral
Cover: Oil,abrasion and weather resistant synthetic rubber
Applicable specs: EN 856 4SH / SAE 100 R10 / ISO 1436-1 4SH/R10
Related products :

hydraulic Hose	Reinforcement	Product Name
	One steel wire braided	SAE R1AT/DIN 1SN,SAE R1A/DIN 1ST,DIN 1SC
	Two steel wire braided	SAE R2AT/DIN 2SN,SAE R2A/DIN 2ST,DIN 2SC
	One/two wire braided	SAE R16,SAE R17
	Four steel wire spiral	SAE R9,SAE R12,DIN 4SP,DIN 4SH
	Four/six wire spiral	SAE R13,SAE R15
	Textile fiber braided	SAE R3,SAE R4,SAE R6
Industrial Hose	Water/Air hose,Fuel/Oil hose

Zaozhuang Tianyi Industrial Co., Ltd., established in 2002, is located in Zaozhuang City, Shandong Province, China. Covering an area of 30,000 square meters, we are professional manufacturer of hydraulic hoses, fittings, Hydraulic oils and excavators.

---
