| US$4.60-6.60 | 1,000 Pieces (MOQ) |

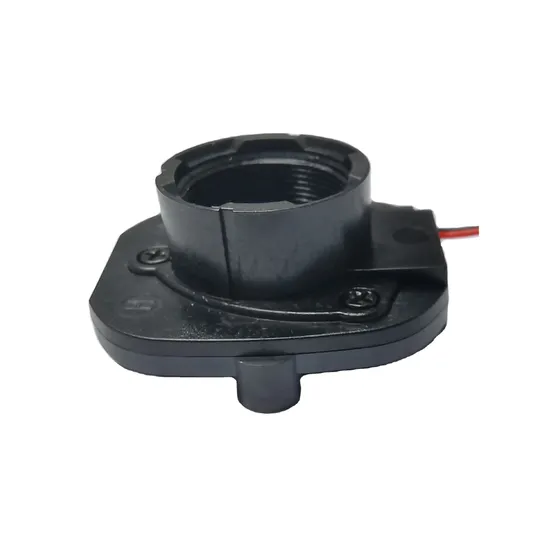

| Technical Parameter of IR-CUT Switch | |||||||||
| NO. | Model No. | Dimensions (mm) | Openning size(mm) | Filter size (mm) | Filter thickness (mm) | Resistance (Ω) | Driving Voltage(V DC) | Current (mA) | Durability (CS Min) |
| 1 | 01-001-009 | 42.26x20x15.2 | 18.0x18.0 | 21x19 | 0.50 | / | 3.5~4.5 | 230 Max | 100,000 |
| 2 | 01-001-012 | 35.17x22.5x13.8 | 8x7 | 9x8.7 | 0.30 | 37±10 | 4.5~5.0 | / | 100,000 |
| 3 | 01-001-014 | 25.55x22.82x11.2 | Φ6.6 | 7x0.65 | 0.21 | 50±10 | 3.8~5.0 | 70~90 | 100,000 |
| 4 | 01-001-015 | 48x33x17.6 | 16x16 | 16x16 | 0.30 | / | 4.5~5.0 | 300 Max | 500,000 |
| 5 | 03-001-001 | 26.15x24.78x9.2 | 7x6 | 7x6 | 0.21 | 23±5 | 3.5~5.0 | / | 50,000 |
| 6 | 03-001-002 | 27x24.78x11.2 | 7x6 | 7x6 | 0.21/0.30 | 23±5 | 3.5~5.0 | / | 50,000 |
| 7 | 03-001-003 | 25.6x24.8x12.3 | Φ15.2 | 6.93x6.43 | 0.21 | 45±8 | 3.0~12 | / | 200,000 |
| 8 | 03-001-004 | 21.2x20x8.2 | 6.6x5.5 | 0.21 | / | 2.5~5.0 | 60mA | ||
