Basic Info.
Model NO.
Half GMT Pallet HG-007
Product Name
Gmt Brick Pallet
Keywords
Gmt Fiber Pallet
Density
1100kg/Cubic Meters
Water Immersion Rate
<=0.5%
Impact Strength
>=30kj/M2
Flexural Strength
>=30MPa
Flexural Modulus
>=2.0MPa
Length and Width Deviation
+/-5mm
Thickness Deviation
+/-1mm
Temperature Resistance
-40 to 90 Celsius
Usage
Block Making Machine
Transport Package
Standard Shipping Packaging or Customized
Specification
Standard Or Customized
Production Capacity
2000tons/Month
Product Description
LINYI RHINOS Composite Pallet China Manufacturers Gmt Pallet For Concrete Block Machine Cement Brick Machine Gmt Fiber Pallet
Product Description

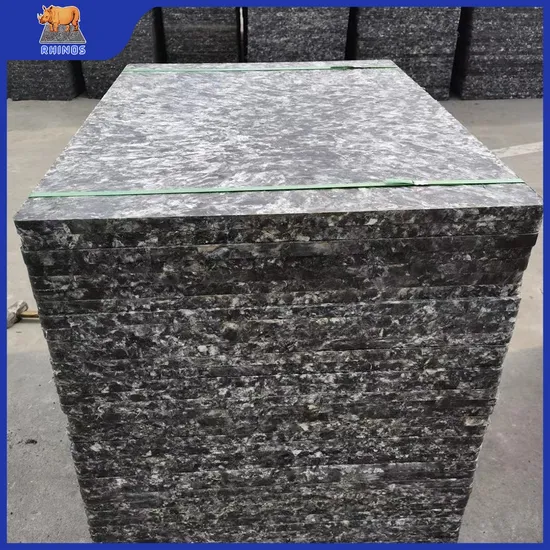

GMT Brick Pallet
GMT(Glass Mat reinforced Thermoplastics), or glass fiber mat reinforced thermoplastic composite material, which is made of fiber as reinforcing material and thermoplastic resin as base material made by the method of heating and pressurizing. It has become a widely used composite material in the world and is considered one of the most prospective developed new materials in the 21st century.
Our GMT pallet is made of glass fiber as the reinforcement material and thermoplastic resin as the base material and is made by crushing, heating, cooling, pressurizing, and other methods.GMT plastic pallet has been carefully designed to be a true all-rounder, delivering high performance. It is common for brick-making machines, production plants, and goods distribution.
The Half GMT brick pallet means the brick pallet contains 50% glass fiber, the glass fiber is like the net frame inside a pallet, so the more contained, the higher strength, and hardness; The harder brick pallet can help block machines forming high-density blocks.
GMT brick pallets play a key role in making concrete blocks by block machines; Brick pallets provide the necessary support and protective function during the block molding process. They allow freshly molded blocks to cure and harden while maintaining their shape and integrity.
Detailed Photos
Product Parameters
| S/N | Characteristics | Technical Indicator | Outstanding Performance | Compared with other Materials Pallet |
| 1 | Rigidity | Elasticity Modulas 3.7 GPa | No Deformation | More Rigid than same thickness solid wood pallet |
| 2 | High Load Bearing | Max load 2.0 know, Bending Strength 51.0 MPa | Stand big pressure, high load, and brings no rupture | Higher Load Bearing than same thickness PVC and solid wood Pallet |
| 3 | Anti-abrasion | Shore Hardness 72 | Long Life Span | Better Performance than plywood and bamboo wood Pallets |
| 4 | Anti-impact | Withstand Impact of 20KJ/m2 | Vibration Resistant, Anti-fall, and no Cracking | Better Performance than plywood and solid wood Pallets |
| 5 | temperature Resistant | Operating Temperature between -40 degree-90 degree | Insolation Resistant, Anti-aging, and Suit for Steam Curing | Better Performance than PVC, steel, and bamboo wood Pallet |
| 6 | Erosion Resistant | Resistance of most Acid, Alkali, and Salt | Protect inner steel and bamboo against rust and mildew | Better Performance than bamboo wood and steel Pallet |
| 7 | No Water Immersion | Water Immersion Rate <0.5% | Protect inner bamboo(wood) board | Better Performance than Bamboo Wood Pallet |
| 8 | Light Weight | Density<1 | Effort Saving and Friction Reducing | Lighter than PVC and Steel Pallet |
| 9 | Life Span | Life Span can reach 8 years theoretically | Low Cost | Better Performance than PVC and bamboo wood Pallet |
| 10 | High Performance | High Performance and Low Cost | Extremely Low Cost during a long time using | Better than all other material pallets |
| fiber brick pallet is a new popular product for brick machine auxiliaries, its advantages like long life, water resistance, temperature resistance, and less weight, can not be replaced by traditional pallets; it is a really good performance choice for users. |
Company Profile
FAQ
Q1: Are you a factory or trading company?
A1:We are both manufacturer & trader.
Q2:how can we guarantee the quality?
A2:Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q3: Can I customize the product?
A3: Yes, please contact us for details.
Q4: Can I use my logo?
A4: Yes, we accept OEM order logos from customers.
Q5: What are your terms of payment?
A5: We prefer t/t and 30% as deposit, pre-shipment account balance.
Q6: What makes you better than other businesses?
A6: unmatched quality, custom size, ability to meet special requirements, short delivery time, and good after-sale service.
Q7:What can you buy from us?
A7:bamboo pallet, GMT pallet, brick pallet, block pallet, PVC pallet
Q8: How can I know which pallet suits my use?
A8: All you need is to give the below details and our sales team will recommend suitable models.
a). Pallet sizes, Length *Width *Height.
b). Pallet usage includes stackable pallets, rackable pallets, flooring-use pallets, and export-use pallets.
c). Pallet load capacity dynamic load, static load, and racking load accordingly.
>>
