Product Description
Product Description

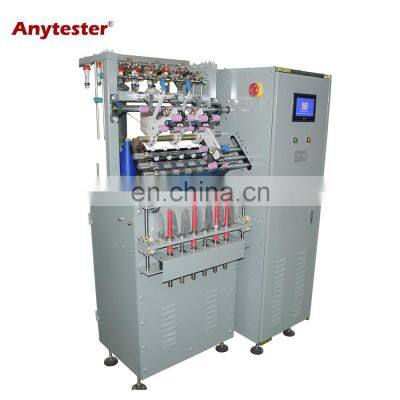

Product DescriptionAT206F Fancy Spinning Machine is a ring spinning machine with special accessories to spin fancy yarns of change in color or structure, such as slub yarn, variable twist yarn, core-spun yarn winding yarn (an existing yarn wound onto the new-spun yarn) by modifying draft ratio or twist, besides the normal functions of ring spinning machine FeaturesEasy to operateLarge touch screen display and PLC control;Independent controlling of core-adding roll and drafting rolls Skided Design1. Multi-functions of color-change yarn, slub yarn, varibable-twist yarn, core-spun yarn and winding yarn besides the normal functions of ring spring machine;2. Program for spinning up to 30segments of setting spinning time, front roll linear speed, middle roll linear speed, back roll linear speed and core-feeding roll linear speed.SpecificationModelAT106FAT206FControl modeTouch screen & PLC controlTouch screen & PLC controlSuitable fiber typeCotton or cotton-type fibersCotton or cotton-type fibersFiber length21~42mm21~42mmOutput capacity0.25~0.5kg/h 0.25~0.5kg/h Linear density of yarn6~99tex6~99texSpindle gauge70mm70mmNumber of spindles6,126,12Ring diameter42mm42mmPressure modePendulum arm for cotton spinningPendulum arm for cotton spinningDraft systemThree-roll-up & three-roll downThree-roll-up & three-roll downDraft ratio2~502~50Diameter of drafting rolls25mm25mmDistance between front &middle rolls 44~73mm44~73mmDistance between middle & back rolls 47~48mm47~48mmSpindle length205mm205mmTwist range200~2000T/m, adjustable200~2000T/m, adjustableSpindle speedMaximum 12000rpmMaximum 12000rpmPacking & DeliveryPackagingSize(cm)73 (L) * 72 (W) * 168.5 (D)Weight260 KgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. Contacting usERIC QINWebsiteMobile Phone+86 188 5510 5986Whatsapp+86 188 5510 5986Skype eric-qlkWechat+86 188 5510 5986PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most product
>>
