Product Description
Product Description

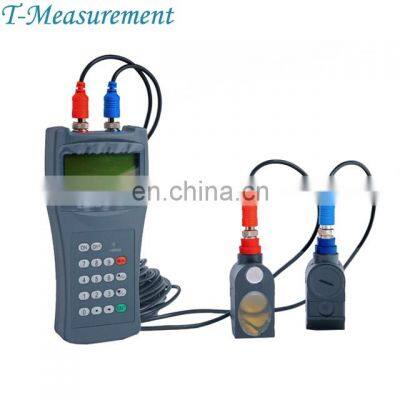

TDS100h liquid kent ultrasonic flow meter with L2 clamp on sensor 1.IntroductionsTDS-100H hand held ultrasonic flow meter is a battery power ultrasonic flow meter ,the capability of a full size flow meter. it is carefully designed for portability and easy for use .1.0.5% of linearity20.2% of repeatability3.4 flow totalizers4.built-in data totalizers5.built-in data-logger6.0.5 secound totalizing period7.Bilingual interface in Chinese and English8.Work properly near transverters9.100 Pico-second resolution of time measurement10.Patent balanced lower-voltage multi-pulse ultrasonic LignitingDigital Water Pulse Flow Meter 2.TDS-100H Accessories1.5m×2 Transducer Cable2.Aluminum Carrying Case3.Battery Charger4.RS232 Cable5.Clamp Fixture6.5m RulerClamp on type Handheld data industrial Ultrasonic Flow MeterDigital Water Pulse Flow Meter3.FeaturesItem ultrasonic flow meter TDS-100HLinearity0.50%Repeatability0.20%Accuracy±1% of reading at rates >0.2mpsResponse Time0-999 seconds,user-configurableVelocity±32 m/sPipe Size20mm-6000mmRate UnitsMeter,Feet,Cubic Meter,Liter,Cubic Feet,USA Gallon,Imperial Gallon,Oil Barrel,USA Liquid Barrel,Imperial Liquid Barrel, Million USA Gallons. User configurable.Totalizer7-digit totals for net,positive and negative flow respectivelyLiquid TypesVirtually all liquidsSecuritySetup values Modification Lockout. Access code needs unlockingDisplay4*8 Chinese character or 4*16 English lettersCommunication InterfaceRS-232C, baud-rate:from 75 to 57600. Protecol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made on enquiry.Transducers Model M1 for standard, other 3 models for optionalDigital Water Pulse Flow Meter 4.Transducer OptionsDigital Water Pulse Flow MeterTransducer Parameters of TDS-100H hand held ultrasonic flow meterTechnical parametersHS-typeHM-typeS2-typeM2-typeL2-typePipe size (mm)DN15~100DN50~700DN15~100DN50~700DN300~6000Pipe size (inch)( 1/2~4" )( 2~28" )( 1/2~4" )(2~28" )( 12~240" )Dimension (mm)200×25×25280×40×4045×30×3071×37×4091×52×44Weight (g)250108075259535Installation methodV ( N/V )V/ZV(N/W)V/ZZLiquid typeswater,sea water,waste water, chemical liquids, oil, crude oil, alcohol, beer, etc.Magnetism Aluminum alloyPlastic alloyTemperature32F~320F ( 0℃~160℃ )Protection classIP65Dimension (mm)200×25×25280×40×4045×30×3071×37×4091×52×44Weight (g)250108075259535Suspension concentration< 10,000ppm and particle size less than 80um. May contain very small amount of air bubbles.Pipe materialcarbon steel,stainless steel,cast iron,copper,PVC,aluminum,fiberglass-epoxy, ect. Allow pipe linerCableShielded transducer cable. Standard length 5m×2. Can be extended to 10m×2 or 15m×2Digital Water Pulse Flow Meter5.Warranty1. 18 Month's Warranty.2. MOQ:1 set.3.Ready to ship out within by sea,TNT,DHL,FedEX,as soon as we receive payment.4. We accept T/T, Western Union, PayPal & Secure Payment. Dgita l Water Pulse Flow Meter Digital Water Pulse Flow Meter6.Contact InformationDALIAN TAIJIA TECHNOLOGY CO.,LTDNO.2(GAN)Huabei Road ,Dalian China Skype:tmeasuremet04TEL:86-411-86737519Fax:86-411-86737519web: Company InformationDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.
>>
