175L/195L/210L/410/450L 1.4MPa-2.9MPa Cryogenic Insulated Welded Storage Liquid Oxygen Dewar Bottle Supplier

Product Description

Product Description
The Dewar Cylinder series is a premium transportable liquid cylinder for cryogenic service. The advanced system design and qulity construction makes the series the most efficient cylinder.The series has six types which can meet you all kinds of demands. The Qiulin Dewar Cylinder is foucus on the quality, precision Engineering and technical excellence. If You give me a try, I will give you the best.
Advantages:
*Ideal for liquid nitrogen, oxygen, argon, and carbon dioxide
*Different sizes, pressures, and features to meet your needs
*Thick, dent-resistant outer shell
*Visible liquid level gauge system
*Rubber foot-ring
*Three-year vacuum warranty
Product Parameters

SPECIFICATIONS
MODEL		175MP	195MP	210MP	175HP	195HP	210HP	210VHP	410MP	450MP	450HP	450VHP
CAPACITY
Liquid(Gross)	:L	175	195	210	175	195	210	208	410	450	450	450
Liquid(Net)	:L	166	186	201	166	186	201	199	370	427	427	427
Storage Capacity
Gas(O)	:Nm³	120	133	144	114	126	136	128	I	308	292	277
Gas(N)	Nm³	97	107	115	91	101	109	96	1	248	234	208
Gas(Ar)	:Nm³	117	130	140	111	123	133	124	1	300	285	269
Gas(LNG)	:Nm³	102	113	123	1	1	/	1	230	263	1	1
Gas(CO)	Nm³	1	1	1	88	98	106	96	1	1	227	208
PERFORMANCE
Standard		GB24159-2009
Working Pressure	:MPa	1.4	1.4	1.4	2	2	2	2.9	1.4	1.4	2	2.9
Relief Valve Setting	:Mpa	1.58	1.58	1.58	2.4	2.4	2.4	3.1	1.58	1.58	2.4	3.1
	(psig)	230	230	230	350	350	350	450	230	230	350	450
The range of regulat	Mpa	0.34~1.2	0.34~1.2	0.34~1.2	1.0~2.4	1.0~2.4	1.0~2.4	2.0~4.0	0.34~1.2	0.34~1.2	1.0~2.4	2.0~4.0
	(psig)	50~175	50~175	50~175	150~350	150~350	150~350	(300~600)	50~175	50~175	150~350	300~600)
NER(LN) ()	:%/day	2.1	2	1.99	2.1	2	1.99	1.99	1.8	1.8	1.8	1.8
GAS FLOW** (NOAr) (,,)	m³H	10	10	10	10	10	10	10	10	16	16	16
LNG	m³H	7	7	7	1	I	1	1	11	11	1	1
CO	m³H	1	1	1	3	3	3	3	1	1	5.5	5.5
DIMENSION&WBGHTS
Diameter	:mm	506	506	506	506	506	506	506	756	756	756	756
Height	:mm	1467	1588	1679	1467	1588	1679	1679	1510	1609	1609	1609
Net Weight'	:kg	120	128	134	137	146	153	180	218	230	278	245
Full Weight(LN) ()	:kg	121	134	144	114	126	136	120	1	310	292	396
(LO)	:kg	172	191	205	163	181	195	183	1	441	418	261
(LAr)	:kg	209	232	249	198	220	237	222	1	535	508	481
(LNG)	:kg	73	81	88	1	/	/	1	157	179	1	1
(LCO)	:kg	1	1	1	175	195	210	191	1	1	450	412
*The Net Weight is a average amount and the precise amount is written on the name plate;

Company Profile
Jiangsu Qiulin Special energy equipment joint stock Co.,Ltd founded in 2010, and mainly engaged in all kinds of non-standard vessels with or without pressure, cryogenic storage tank, coal water slurry complete equipment, steel structure etc.
Qiulin owns advanced design capabilities,is equipped with modern manufacturing facilities,and a full range of in-house test equipment. Over the years, we adhere to the "customer-oriented" business philosophy to provide our customers with all kinds of equipment and have the competitive edge in quality, delivery and price. Qiulin has diversified manufacturing capabilities, mainly focused on the following two areas:
I. Pressure equipment
We design individually to customer requirements, and manufacture pressure vessel, cryogenic storage (Liquefied natural gas, liquefied industrial gases) & reactors & heat exchanger, columns., etc. in accordance with the following standards and codes:
· China Code GB150 and GB151 for A1, A2 and A3 Pressure Vessel design and manufacturing license;
Class B3 Special cylinder manufacturing license;
GC2 class pressure piping installation license, tank container CCS
· ASME Boiler and Pressure Vessel Code, Section VIII, Div.1 - (U Stamp, NB Stamp)
· Pressure Equipment Directive 2014/68/EU (PED) for the European market PED
· Cryogenic storage apply to the North American market DOT/CNR
· In addition, we are applying for KGS certificate for Korean market
II. Other custom products
· Metallurgy, mineral equipment fabrication, including coal water slurry complete equipment, mill, furnace, casting machine, disk machine, etc.
· Paper machine and marine equipment
· Process modules and skid equipment fabrication, including detailed design, material purchasing, fabrication, assembly, painting, insulation, electrical and instrumentation, etc.
· Custom prefabricated steel structures
Qiulin has been partner of many domestic and overseas famous company like CNPC, CNOOC, SINOPEC, Air Liquid, Air products, Messer, Linder Yingde gases, Fuel Tech, ABB, MO,Andritz, Reel, Morimatsu etc.

Established	2010
Export rate	30%
Site Area	100000 square meter
Supply Scope	Pressure vessel, storage tanks, heat exchangers, reaction kattles, adsorber for air separation etc. Cryogenic liquid storage tanks, skid of gas production. Steel structure fabrication, steel structure equipment
Application	Oil and Gas, LNG and Marine , petrochemical, metallurgy, food and pharmaceutical, environmental protection
License	_Design and Fabrication License for Category I ,II & III (Class A1 and A2) of Chinese standard pressure vessel _ASME U,DOT/CNR _API, EN,AWS _ISO9001:2008, ISO14001:2004, OHSAS18001:2007
Production capacity	Monthly steel structure fabrication:3000T Maximum loading weight:200T Maximum diameter: 9.2M Lifting Height: 14M

Fabrication Line

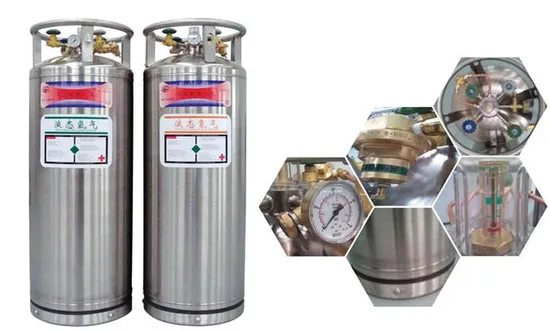

Feature of Dewar Cylinder
Workshop Site
Main Equipment
Certifications
Packaging & Shipping
Project Case
Our Client
Trade Show

Our other Products
FAQ
Q1: Are you manufacturer?
A1: Yes, we're an experienced manufacturer.

Q2: Can we use our LOGO and design?
A2: Of course, we offer OEM/ODM service.

Q3: What's the sample cost?
A3: The sample and shipping charges will be required.
Once the mass production order is placed, the sample charges will be deducted.

Q4:Do you inspect the finished products?
A4: Yes, each step during production will be inspected by our Qc team.

Q5: What's the payment term?
A5: Normally TT,LC, detail to be discussed

Q6:Any warranty for the goods?
Q6:Normally 1 year warranty after delivery except artificial damage. For Vacuum is 3 years.
