Extremly High Pressure 4 Spiral Steel Wire Reinforced Hydraulic Hose Pipe

Product Description

Product Name
High Pressure Steel Wire Braided Hose Product Specification

High pressure steel wire braided hose:

1. Product structure

The structure of the steel wire braided hose is composed of a liquid-resistant synthetic rubber inner rubber layer, a middle rubber layer, a one or two or three layer of steel wire braided reinforcing layer, and a synthetic rubber outer rubber layer with excellent weather resistance.

2. Product use

Steel wire reinforced hydraulic rubber hose is mainly used for mine hydraulic support, oilfield mining, suitable for engineering construction, lifting and transportation, metallurgical forging, mining equipment, ships, injection molding machinery, agricultural machinery, various machine tools and various industries Transportation of petroleum-based (such as mineral oil, soluble oil, hydraulic oil, fuel oil, lubricating oil) liquid, water-based liquid (such as emulsion, oil-water emulsion, water), water-based liquid (such as emulsion, oil-water emulsion, water), For gas, etc. and liquid transmission.

Note: The steel wire braided hose of our company is designed and manufactured according to the GB/T3683-1992 standard, and can be produced according to the requirements of ISO/DIS1436-1985, DIN20022 and SAE100R1AT, SAE100R2AT standard hoses, this standard is not suitable for castor oil-based and grease-based liquids.

3. Working temperature

oil: -40ºC-+100ºC, air -30ºC-+50ºC

water: emulsion below +80ºC

4. Product Features

(1) The hose is made of special synthetic rubber, which has excellent oil resistance, heat resistance and aging resistance.

(2) The hose has high bearing pressure and excellent pulse performance.

(3) The tube body is tightly combined, soft to use, and less deformed under pressure.

(4) The hose has excellent bending resistance and fatigue resistance.

(5) The length of the steel wire braided hose is large, the fixed length above Φ32 is 20 meters, and the length below Φ25 can reach ten meters or even more than 100 meters.

Product Description

1. Structure

The inner and outer rubber layers of the cloth steam hose are made of synthetic rubber with excellent heat resistance, and the middle pure cotton canvas reinforcement layer. The tube body is soft, light, flexible, and heat resistant.

2. Purpose

It is suitable for conveying saturated steam or superheated water not higher than 150ºC.

3. Features

The rubber layer has good heat resistance, and the burst pressure of the rubber tube is not less than 10 times of the working pressure.

technical parameters of single-layer steel wire braided hose
hose size	the inside diameter	diameter of steel wire layer(mm)	outer diameter	work pressure		test pressure		burst pressure		minimum bending radius(mm)	reference weight(kg/m)
				MPA	Psi	MPa	Psi	MPa	Psi
1-5-21	4.5-5.5	9.5±0.6	14±0.8	21	3043	31.5	4564	63	9129	90	0.25
1-6-20	5.5-6.5	11.7±0.6	16±0.8	20	2898	30	4347	60	8694	100	0.34
1-8-17.5	7.5-8.5	13.7±0.6	18±0.8	17.5	2536	26.25	3804	52.5	7607	115	0.41
1-10-16	10±0.5	15.7±0.6	20±0.8	16	2318	24	3478	48	6955	130	0.47
1-13-14	13±0.5	19.7±0.6	24±1.0	14	2028	21	3043	42	6086	180	0.70
1-16-12	16±0.5	22.7±0.8	27±1.0	12	1739	18	2608	36	5216	205	0.84
1-19-10	19±0.5	25.7±0.8	30±1.0	10	1449	15	2174	30	4347	240	0.95
1-22-9	22±0.5	28.7±0.8	33±1.0	9	1304	13.5	1956	27	3912	280	1.09
1-25-8	25±0.5	32.2±0.8	37±1.0	8	1159	12	1739	24	3478	300	1.38
1-32-6	32±0.5	39.2±0.8	44±1.2	6	869	9	1304	18	2608	420	1.80
1-38-5	38±0.7	45.2±0.8	50±1.2	5	725	7.5	1087	15	2174	500	1.38
1-51-4	51±1.0	58.2±0.8	63±1.5	4	579	6	8694	12	1739	630	1.80
1-64-2.5	64±1.0	71±0.8	75±1.5	2.5	362	3.75	543	7.5	1087	770	4.00
1-76-1.5	76±1.0	84±0.8	88±1.5	1.5	217	2.25	326	4.5	652	930	5.50
1-89-1	89±1.0	99±0.8	103±1.5	1	144.9	1.5	217	3	435	1100	7.60
1-102-1	102±1.0	111±0.8	115±1.5	0.8	116	1.2	174	2.4	348	1250	9.00

technical parameters of double-layer steel wire braided hose
hose size	the inside diameter	diameter of steel wire layer(mm)	outer diameter	work pressure		test pressure		burst pressure		minimum bending radius(mm)	reference weight(kg/m)
				MPA	Psi	MPa	Psi	MPa	Psi
2-5-60	5±0.5	11.2±0.6	15±0.8	60	8694	90	13041	150	21735	90	0.40
2-6-60	6±0.5	13.5±0.6	18±0.8	60	8694	90	13041	150	21735	100	0.45
2-8-50	8±0.5	15.5±0.6	20±0.8	50	7245	75	10868	125	18113	115	0.62
2-10-40	10±0.5	17.5±0.6	22±0.8	40	5796	60	8694	100	14490	130	0.71
2-10-53	10±0.5	16.5±0.6	24±0.8	53	7680	79.5	11520	132	19127	130	0.71
2-13-30	13±0.5	21.5±0.8	26±1.0	30	4347	45	6521	90	13041	180	0.93
2-16-21	16±0.5	24.5±0.8	29±1.0	21	3043	31.5	4564	63	9129	205	1.00
2-16-34	16±0.5	24.5±0.8	30±1.0	34	4929	51	7390	85	12317	205	1.23
2-19-18	19±0.5	27.5±0.8	32±1.0	18	2608	27	3912	54	7825	240	1.23
2-19-34	19±0.5	27.5±0.8	32±1.0	34	4926	51	7390	85	12317	240	1.38
2-22-16	22±0.5	30.5±0.8	35±1.0	16	2318	24	3478	48	6955	280	1.54
2-25-14	25±0.5	34±0.8	39±1.0	14	2029	21	3043	42	6086	300	1.54
2-32-11	32±0.5	41±0.8	40±1.2	11	1594	16.5	2391	33	4782	420	1.82
2-38-10	38±0.7	47±0.8	52±1.2	10	1449	15	2174	30	4347	500	2.44
2-51-8	51±1	60±0.8	65±1.5	8	1159	12	1789	24	3478	630	3.18
2-64-5	64±1	74±1	79±1.5	5	725	7.5	1087	15	2174	790	3.74
2-76-4	76±1	86±1	92±1.5	4	580	6	895	12	1789	920	4.77
2-89-3	89±1	99±1	106±1.5	3.5	507	5.25	761	10.5	1521	1060	5.73
2-102-5	102±1	112±1	118±1.5	5	435	4.5	652	9	1304	1200	6.16
2-127-4	137±1	137±1	143±1.5	4	290	3	448	6	869	1450	7.32

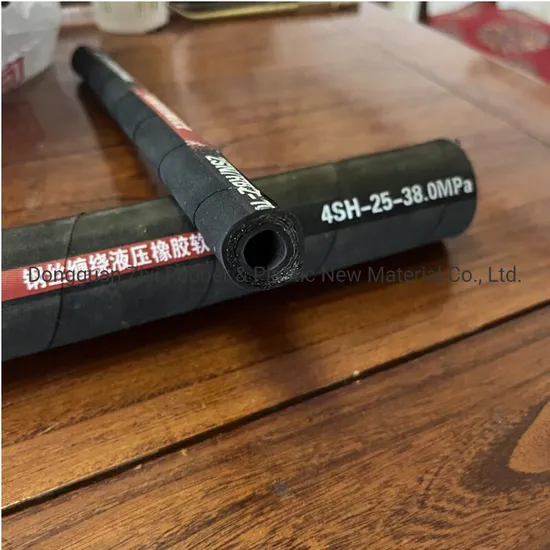

Detailed Photos
Production Workshop
Product Application
International Experiance
Certifications
Our Advantages
1.Q: Are you manufacture or trade company?
A:We are manufacture factory
2.Q: How can I get the samples?
A:If you need some samples to test, we can make as per your request .The transportation freight of samples and our samples cost wil be on the buyer, while the samples cost can be refundable after you place the order if the amount meets our requirement.
3.Q:How much the transportation freight of samples?
A:The freight depends on the weight and packing size and your area.
4.Q:How long can I expect to get the sample?
A:The samples will be ready for delivery within 7 days. The samples will be sent via express and arrive in 4-7 days.
5.Q:Is OEM, ODM accepted?
A:Yes,sure,we can print your logo.
6.Q:How to order?
A: Please send us your purchase order by Email or you can ask us to send you a invoice for your order. We need to know the following information for your order:
1) Product information-Quantity, Specification (Size, Material, Technological and Packing requirements etc.)
2) Delivery time required.
3) Shipping information-Company name, Street address, Phone &Fax number, Destination sea port.
4) Forwarder's contact details if there's any in China(if have).
