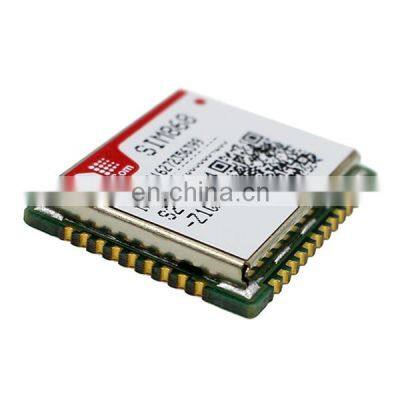

Popular Customized Simcom Sim868 Gsm/Gprs Gnss Module

Product Description

Product Description
Product Description• SIM868 module is a complete Quad-Band GSM/GPRS module which combines GNSS( GPS/GLONASS/BDS) technology for satellite navigation.• The compact design with LCC and LGA pads will significantly save both time and costs for customers to develop GNSS enabled applications.• Featuring an industry-standard interface and GNSS function, it allows variable assets to be tracked seamlessly at any location and anytime with signal coverage.General features•Quad-band 850/900/1800/1900MHz•GPRS multi-slot class 12/10•GPRS mobile station class B•Compliant to GSM phase 2/2+–Class 4 (2 W @ 850/900MHz)–Class 1 (1 W @ 1800/1900MHz)•Support GPS/GLONASS/BD•Dimensions: 17.6*15.7*2.3mm•Weight: 1.5g•Control via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)•Supply voltage range 3.4 ~ 4.4V•Low power consumption•Operation temperature:-40℃ ~85℃Specifications for GPRS Data•GPRS class 12: max. 85.6 kbps (downlink/uplink)•PBCCH support•Coding schemes CS 1, 2, 3, 4•PPP-stack•USSDSpecifications for SMS via GSM/GPRS•Point to point MO and MT•SMS cell broadcast•Text and PDU modeSoftware features•0710 MUX protocol•Embedded TCP/UDP protocol•FTP/HTTP•MMS•POP3/SMTP•DTMF•Jamming Detection•Audio Record•SSLSpecification for GNSSReceiver type-33 tracking /99 acquisition -channelSensitivity-Tracking: -167 dBm-Reacquisition: -161 dBm-Cold starts : -149 dBmTime-To-First-Fix-Cold starts: 28s (typ.)-Hot starts: <1s-Warm starts: 22sAccuracy-Horizontal position : <2.5m CEPInterfaces•77 SMT pads•SIM Card Interfaces---SIM card: 3V/ 1.8V•Analog audio interface•RTC GNSS backup•I2C interface•USB interface•Serial interface•SD•GPIO•ADC•GSM Antenna pad•GNSS Antenna padCertifications•CE•FCC•ROHS•REACH•CCC•TAWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC

---
