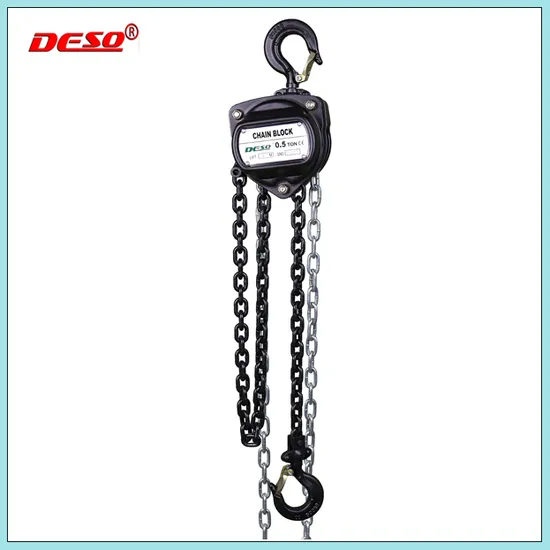

Heavy Duty Steel Lifting D Type Chain Block / Chain Hoist

Product Description

Chain Block / Chain Hoist (D type)
* Compact design, low headroom
* High precision gears
* High endurance roller on load sprocket
* Double pawl brake system
* Engineering-optimized hand chain wheel, preventing hand chain stuck in Fast Operation
* High precision load chain guide
* Quenched and tempered high tensile G80 load chain and hooks
* Smooth surface with powder coated preventing rust
* Individual serial No. for each set, wheel cover with DESO logo and WLL embossed.

Product	Chain block (D type)
Material	Gear	International standard alloy steel
	Hook	High-class alloy steel
	Chain	Alloy Steel,meet EN818-7standard
Capacity	0.5t~50t
Feature	* High efficiency, small pulling effort and easy maintenance * Overload limiter protects hoist mechanism is available * Wet friction discs with longer life * Wider opening hook of easier handling shape * Forged upper and bottom hooks with forged steel safety latches * Double pawls supporting fail-safe brake mechanism for secure operations
Delivery Time	20~40 days, based on Qty
Packing	Carton / Wooden case / Wooden case + Pallets as required
Application	Widely used in the dock, logistics operations, factory warehouses, construction and modern production lines

Capacity (T)	Lift (M)	Test Load (kN)	Pull to lift rated load (N)	Strands of load chain	Load chain dia. (mm)	Dimesion					Net weight (kg)	Extra weight of one M lift (kg)	Packing size (cm)
						A	B	C	D	K
0.25	2.5	3.1	190	1	4	104	100	230	30	23	4.2	1	17*15*14
0.5	2.5	6.3	262	1	6	1265	136	266	36	25.5	9.2	1.7	20*16*19
1	2.5	12.5	265	1	6	143	156	324	40	28	11.3	1.7	23*18*20
1.5	2.5	18.8	265	1	7.1	148	182	392	52	38	15.6	2	29*22*22
2	3	25	272	1	8	152	198	407	52	38	19	2.3	29*22*22
3	3	37.5	320	1	10	181	266	636	60	40	28	3.1	40*25*24
3	3	37.5	280	2	7.1	156	214	465	60	42	23.4	3.1	33*25*21
5	3	62.5	358	2	10	181	266	636	68	50	43.2	5.3	42*28*24
10	3	125	370	4	10	181	365	798	85	57	76.8	9.8	54*49*30
20	3	250	370*2	8	10	192	630	890	106	84	160	19.6	88*78*34
30	3	375	370*2	12	10	330	670	1000	106	84	230	28.3	88*78*40
50	3	625	370*2	22	10	410	900	1950	170	130	850	50	160*130*90

Fair
Rated Products
If you need more details and have any questions, please feel free to contact us, we are more than pleased to do any help. Thanks!

---
