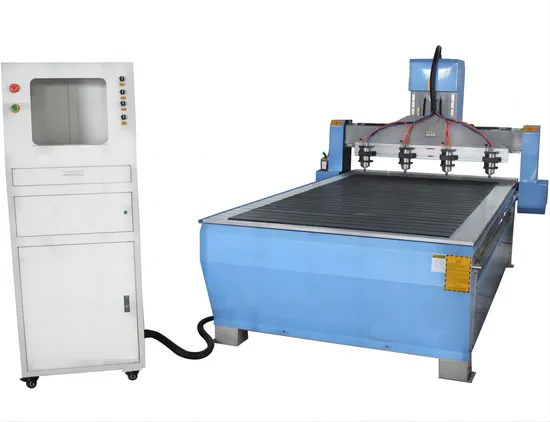

Rhino Wood Working Machinery Multi-Head Engraving Machine - 6/8 Spindles and 6/8 Rotating Axes Engraving Machine for Wood Table Chair Legs Making

Product Description

Rhino Wood Working Machinery Multi-head engraving machine - 6/8 spindles and 6/8 rotating axes engraving machine for Wood Table Chair Legs Making
Product Parameters
Technical Parameters

Model		R-1200P
Working Area		1500×1500×300mm
Spindle Motor		2.2kw water COOLING SPINDLE ATC
Working Mode		DELTA/Leadshine SERVO MOTOR DRIVERS 850W
Control System		DSP A11 /NK105 control handle
Drive Mechanism		Gear-wheel on x,y axis
Table Surface		Vacuum table or T-slot extrusions
Frame		wholly steel structure
Motion Positioning Accuracy		± 0.03/300mm
Repositioning Accuracy		± 0.05mm
Max Motion Speed		80,000mm/min
Max Engraving Speed		50,000mm/min
Rotating Speed of Spindle		18000rpm
Z-axis setting		Auto Z origin tool high sensor
Dictate Formate		G code, *.u00, *.mmg, *.plt
Operating Voltage		3phase 380v
Software		Type3 original with Dongle or Wentai (ArtCUT), ArtCAM software
Packing Size		3350×1950×1990mm
Lubrication System		Oil lubrication system
Net weight/ Gross Weight		1227kg/ 1240kg
Noise Level	Racing	LAeep dB(A)72±1
	Engraving	LAeep dB(A)80±2
	Engraving Peak	LAeep dB(C)95
Optional Parts		Dust Collecting System
		Vacuum Table with Air Pump (For XZ-1224,1325)
		Mist Sprayer and flume
		Rotary device with Dia80mm/100mm/200mm
		DSP System w/Portable Control Pad (128MB)

Rhino multi spindles heads R-1200 CNC Router have two working ways one is flat T-SLOT working and another is 3D Rotary working .Also different table size can be customized like 2000mmx3000mm/2000mmx4000mm etc and professional for wood,aluminum,PVC etc milling and drilling.
Specifications of CNC Wood Carving Machine R-1200P
Ø Machine all axis adopt Taiwan HIWIN25 square linear guide rail. the bearing of the lead guide rail is face to face, ong time use precision still high.
Ø German double nut automatically TBI brrand ball screw on Z axis wtih diameter 32mm .
Ø High speed drivers, fast speed and great strength with Japan servo 850W and encoder cable.
Ø No dust oiling structure, guarantee the long term running of the mechanical aspect.
Ø Function of power off and start continue engraving at the break point, can engrave at any place as you like.
Ø Strong compatibility: compatible various CAD/CAM software like Type3/artcam/castmate/proe/Corelerow/Wentai.
Ø ER25 collect air cooling spindle high power frequency changing air cooled spindle, can process hard materials efficiently like all kinds of wood,plywood,mdf etc Our Advantages
Performance Features:
1. Multi spindles max 12 pieces no problem working with multi rotary that professional for 2D and 3D cutting engraving
2. Two working mode one is flat table T-SLOT that for flat materials cutting engraving, another is flat table removed then rotary working professional for 3D Column milling
3. Heavy body : heavy intergral welding structure, 8-10mm steel gantry ( solid and reliable, no distortion, carrying weight, stability).
4. Taiwan HIWIN square rails, imported ball screw from Germany with high quality helical rack.
5. Two motors drive system for Y axis.
6. Professional vacuum system, strong adsorption capacity.
7. Support different CAD/CAM software: Wentai, Mastercam, Type3, Artcam, Caxa, JD paint, proe/ UG and etc.
8. Machine program is more intelligent with TAIWAN Syntec 60WE system, Super fast tool changing speed so improve working efficiency.
9. Intelligent protection work table to prevent the machine collision with a short point, continued carving off function, to avoid wasting material.
8.CE certificate safe and high quality cables that make sure make sure machine run many years no any problem and keep machine very safe still
10. Original electronic parts like leadshine 860H drivers, 450B stepper motors and high quality belts
11. T-SLOT aluminum profile working table
12. Fast cutting engraving speed with high precision
13. 24 hours running machine before delivery to make sure 0 mistake in production
14. Fast cutting,milling,engraving speed could be 40m/min , increase working efficiency greatly
15. It is the upgrading cnc router machine with automatic tool changer which is more convenient to use in woodworking business like kitchens,closets,cabinets etc.
16. Pneumatic linear tool changer magazine 12 pieces movement together with X gantry beam, also improve working efficiency of automatica tool changing.
17. Linear HIWIN30 rails and helical rack are in the same surface with new structure to make sure machine will not deform after working for a long time
18. For wood carving & cutting precision could be 0.05mm perfectly because machine structure more stable and heavier than ordinary cnc router in market.
19. Automatic height adjust legs,if your ground is not flat machine can be adjusted itself well
20. Whole dust proof system with pipe 30mm diameter to help you keep a more clean working environment
21. Fast service support, if you have any doubts for this machine in operation we give you 7x24 hours fast reply at anytime
22. Economic price so it is highly popular among customers from Australia .
23. Total rhino ATC CNC Router RSKM2040 is with high technology that increased the stability of working,adn lowered the failure rate,saved energy consumption by 1%,increased production by 3%,inproved the production efficiency and product quality.
Material & Application
Application area of CNC Wood Carving Machine
1. It is used in all kinds of wood FURNITURE AREA like three dimensional wave board processing, cabinet door, solid wood door, craft wood door, paint free door, screen, craft fan window processing, shoeshine machine, game machine cabinet and panel, mahjong table, computer table and panel furniture products auxiliary processing.
2. Machine also can be used in sign and LED field like advertising signs, logo production, acrylic cutting, plastic molding, production of various materials advertising products.
3. Also the mold industry also no problem that for carving copper, aluminum, iron and other metal mold, as well as artificial marble, sandstone, plastic plate, PVC pipe, wood and other non-metal mold.
4. The Other industries like all kinds of large relief and shadow carvings, which are widely used in Arts and crafts industry
Materials can be worked by this machine:
All kinds of wood like solid wood,elm, willow, Redwood, teak, toon, cherry, rosewood, Redwood, white pine, Paulownia, etc.
Other materials like arcylic,plastic,pvc,foam,PE,PP,glass,soft metal also no problem
Machine Packing List
Packing list
1x Engraving machine
1x Control box
1x Parallel port cable 25pin
2x Power cable
1x Tool box and tools
50x Seal pieps
1x CD of manual and software artcam/type3/ucancam etc
10 x Tool holders
1x Dust collector
4x Dust brsh clamps
1x Dust brush
10x ER32 tool chuck
2x Limit sensor OMRON
2X White color tool clamp
Machine detailed Components :
1. Hard vacuum table with T-SLOT combination easy for wood materials fix on table

2. Multi spindles 2.2kw water cooling type max 12 pcs no problem
3. Stepper motor driver and servo motor drivers both no problem for option
4.NK105 control system with handle easy to learn and operate
6. High precision M2 rack pino with HIWIN 20 square rail for transmission to make sure cutting engraving precision better.
7. Auto Tool sensor is avaialbe
8. High quality safe cables with all DELTA servo drivers installed in the seperately control box, we also use the big power transformer to supply stable power for all drivers to make sure machine working well .
9. Flat t-slot working table and rotary working combination. for flat materials fast cutting engraving and multi rotary with multi spindles working.
10. 10 pieces air jack along with x axis and y axis to help customer location materials more easily and proper !
Samples
Machine cutting and engraving samples:

Packaging & Shipping
Machine Package:
Rhino CNC Machine package process:
1. Firstly machines are inspected by engineers make sure no any problem then we have special workers who are professional for machine pacakge. We use plastic film cover machnes to avoid moisture on the sea then we use strong stap to tight machine all components well like gantry,table,dust collector and control panel etc.
2.Then we will move it on the plywood bottom bracket.
3.Setting it in the proper location then use air nail to fix machine legs well on the bracket. It will take about 1-2 hours then we make a full package with plywood box.
4.Finally we use steel strap tight the whole plywood box and print shipping mark and something else as per customer requirement on outside of box. Now the whole process is finished well and it will take 2-3 hours to package it perfectly.
After Sales Service
Our Services(why choose Rhino cnc)
Guarantee & After Sales Service:
1) Two years warranty under machine normal use we supply maintenance for life freely.
2) 24 hours technical support by phone, email ,MSN,Skype or Remote.
3)Free training to make sure you can master the operation of machine,also we will send manual,instruction,teach video with machine together.
4)English vesion operation manual,popular and easy to understand and handle

Company Profile
Company Information
Company Advantages
1, First-class factory meets international production plant's standard, ten years' manufacture and export experiences
2, Own most advanced domestic cnc machining production equipments
3, 5-9 days machine production time, one year warranty and lifetime free maintenance
4, OEM and ODM services available
5, Same quality, our price and service are better; Same price, our quality and service are better
6, with CE, FDA, SGS, ISO9000 certifications
FAQ:
Question 1: I'm interested in cnc router machine,what suggestion can you give?
Answer: Please tell me:what material do you process? What's the size of your material?

Question 2: What's the delivery cost and time?
Answer: Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP.

Question 3: What is the design software?

Answer: We give free Type3 and Artcam software,you can also use your own software,as long as it can transfer into G code .
Welcome to contact us if you have more requirements for above machine!
Also we can produce the cnc router according to your detail requirements!

---
