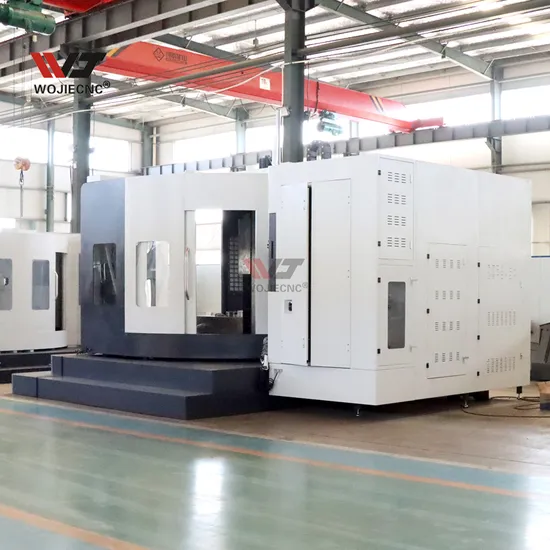

Hmc800 CNC Horizontal Machining Center Hmc Siemens Fanuk GSK Control System 5 Axis Milling Machine Center with High Precision and Strong Rigidity

Product Description

Product Description
HMC Series cnc horizontal machining center is the ideal machining center for producing box-type and irregular work pieces for automobile, shipbuilding, engine and general manufacturing industries.The machine is a high-performance, high-reliability and high-precision product characterized by compact configuration and rapid response rates.
Product Parameters

SPECIFICATIONS	Units	HMC800
Table size	mm	800*800
X axis travel	mm	1300
Z axis travel	mm	1000
Y axis travel	mm	1000
Distance from spindle center to table surface	mm	150-1150
Distance between spindle nose and table center	mm	200-1200
Table quantity	pcs	2
T slot(number-width*pitch)	mm	5-22*125
Max. worktable load	kg	1500
Table indexing	°	1°*360
Maximum speed of table	r/min	10
Main motor power	kw	15/18.5
Spindle taper		BT50-190
Max. spindle speed	rpm	6000
Cutting feed speed	mm/min	1-10000
Rapid traverse speed	m/min	24 / 20/ 24
Tool magazine		Arm 24
Max. tool diameter	mm	112/200
Max. tool length	mm	400
Max. tool weight	kg	18
Tool change time (tool to tool)	sec	3
Machine minimum setting unit	mm	0.001
X,Y,Z axis positioning accuracy	mm	0.012
X,Y,Z axis repeat positioning accuracy	mm	0.008
B axis positioning accuracy	″	10″
B axis repeat positioning accuracy	″	5″
Machine weight	kg	20000
Overall dimension(L*W*H)	mm	6600*4300*3300

Detailed Photos

Control system Standard configuration: GSK Optional configuration: Siemens/ Fanuc/ Syntec/ Mitsubisin	Automatic tool changer24-tool arm-type tool magazine
Spindle Taiwanese brand high-quality spindle, VOLIS/OKADA/ROYAL/AIMACH, etc. Standard configuration: 6000 rpm Optional configuration: 8000/10000/12000 rpm	Workbench High-frequency quenching for better rigidity
3-axis linear guide Using high-precision Taiwanese or Japanese brands, HIWIN/PMI/THK, etc.	Lead screw 3-axis lead screw, using high-precision Taiwanese or Japanese brands, HIWIN/PMI/THK, etc.
	Pneumatic system With electronic display, better stability, when changing tools on the equipment and spindle, the air pressure will be very stable and there will be no tool jamming
Lubrication system The centralized lubrication system can be used in a timely, quantitative, accurate, efficient, convenient and reliable manner, and is conductive to increasing the service life of the machine tool.	Pneumatic system With electronic display, better stability, when changing tools on the equipment and spindle, the air pressure will be very stable and there will be no tool jamming.
Electrical part Standard configuration: DELIX Optional configuration: Siemens	Heat dissipation device Standard configuration: Electrical cabinet heat exchanger Optional configuration: Electrical cabinet air conditioner

Optional Accessories

Company Profile
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months Certifications
FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.

---
