Product Description
Product Description

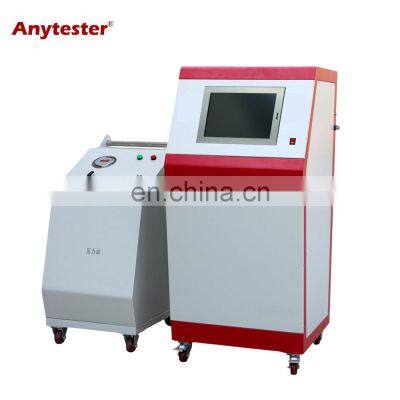

Product DescriptionHY4710 Hydrostatic Pressure Tester is mainly used to determine time-to-failure of plastic pipe under constant internal pressure and also the resistance to hydrostatic pressure in a short time period.Standard ASTM D1598, 1599ASTM F1335ISO 1167, ISO 9080, ISO 1756GB/T 15560, 18252, 6111CJ/T 108 Note: this Hydrostatic Pressure Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us. Features1. The Hydrostatic Pressure Tester consists of pressure control unit, magnetic valve, sensor, pressure workstation, etc.2.The number of working position can be customized according to requirement, that is to say, the interface of pressure can be customized such as 3, 6 or 10, max 50. 3. The dimension of test tank needed bases on the dimension of test pipes Specification ModelHY4710 Hydrostatic Pressure TesterPipe diameter range dia.16~dia.1600mmWorking position 6 positions (1~50 positions can be customized)Operation modeOperation panel/PC controlPressure range 0.2~10MPa (or customized)Pressure resolution 0.001MPaPressure control accuracy -1%~+2%Measuring range 5%~100% F.S.Timing range 1s~10000hTiming accuracy±0.1%Display resolution1sMin. Time setting unitminTemperature control system RT-95℃(15~95℃ with refrigerating system)Temperature control accuracy±0.5℃Main body material 304# stainless steelPower supplyPressure control main machineAC220V, 50HzPressure workstation3phase, AC380V, 50HzConstant temperature tank3phase, AC380V, 50Hz
>>
