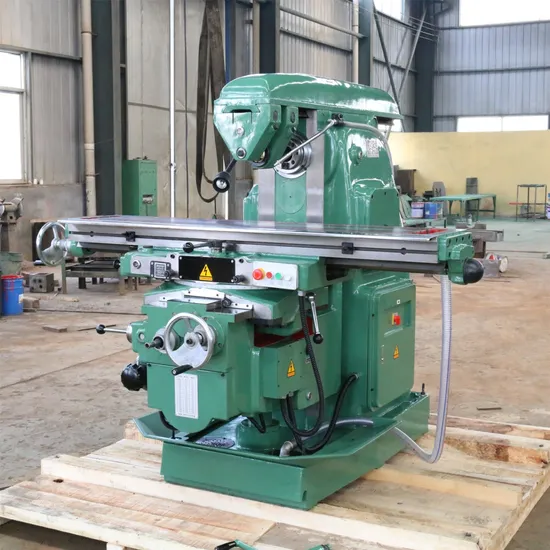

Horizontal milling machine X6132 X6132B X6132BH Universal milling machine price

Product Description

Horizontal milling machine X6132 X6132B Universal milling machine price
Product Description
The main performance characteristics:
1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operation
Application:
1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Product Parameters
Product main technical parameters:

Specifications	Units	X6132
Table size	mm	320×1325
Table load	kg	500
T slot (number-width-pitch)		3-18-70
Max. longitudinal travel of tablel(manual/automatic)	mm	700/680
Max. cross travel of table (manual/automatic)	mm	255/240
Max. vertical travel of table (manual/automatic)	mm	320/300
Range of table feed(X/Y/Z)	Mm/min	23.5-1180/15-786/8-394
Rapid speed of table	Mm/min	2300/1540/770
Distance between spindel nose and table	mm	30-350
Distance between spindle and column	mm	215-470mm
Spindle taper		ISO50 7:24
Spindle bore	mm	29
Spindle speed step		18
Spindle speed range	r.m.p	30-1500
Max rotary angle of table		±45°
Feed motor power	kw	1.5
Feed motor speed	rpn	1400
Main motor power	kw	7.5
Main motor speed	kw	1440
Overall dimension	mm	2294×1770×1610
N.W./G.W.	kg	2650/2950

Detailed Photos
Company Information

Contact Us
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
