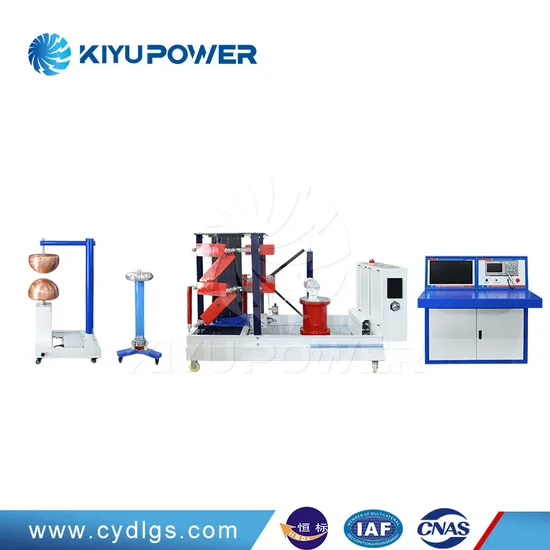

200kv/10kj Lightning Impulse Voltage Generator High Voltage Lab Equipment/ Hipot Tester

Product Description

I.Product Description:
CYDL-DY series impulse voltage generator is used for impulse voltage test of lightning impulse voltage full wave , lightning impulse voltage chopped wave and operation impulse voltage wave which apply to electrical equipment ect. Multiple waveform impulse voltage generator can produce eight kinds of waveforms of standard lightning wave, operation wave, lightning chopped wave, oscillating lightning wave, oscillating operation wave, line insulator steep wave, composite insulator steep wave, transformer induction operation wave. The technology index accords with national standard and IEC standard, is in the leading position at home and has reached an advanced level in the world.
II.Product Features:
1.Complete sets, full voltage classes.
2.Small loop inductance, take the band elimination filter measures, still produce standard impulse wave in the large-capacity load , large load capacity, high voltage utilization, convenient to adjust wave.
3.Simple operation, excellent synchronization performance, reliable action.
4.Use constant current charging technology, high automation, strong anti-interference performance.
5.Use digital measurement and analysis system and computer on line processing system for impulse test data, greatly improve the test technology and efficiency.
III.Product Parameters:

Standard Voltage

Impulse Capacitance(µF)

Classes Capacitance(µF)

Impulse Energy(kJ)

Classes Voltage(kV)

Class

Weight(kg)

±300~±900

0.133~0.111

0.4~1

6~45

±100

3~9

547~1378

±1000~±1600

0.05~0.0937

0.5~1.5

25~120

10~16

1366~1880

±1800~±2400

0.056~0.0833

0.5~1

90~240

±200

9~12

7353~11574

±2800~±3200

0.0357~0.0625

0.5~1.5

140~320

14~16

10266~15680

±3600~±4800

0.0278~0.03125

0.5~2

80~240

18~24

15480~23500

Technique Parameters

Items

1,1.2/50µs 2,250/2500µs 3,2~5µs etc waveforms

Output Peak Value

100~10000kV

T1 Wave Front Time

1.2µs±30%

T2 Wave Tail Time

50µs±20%

Reverse Overshoot

<20%

Voltage Polarity

Positive/negative(manual shifting)

Waveform Shift

Auto shifting

Charging Time

10s~999s, set arbitrarily

Instability of charging voltage

<1%

External Input

50Hz/60Hz

Trigger Method

Auto or manual, can single trigger

Trigger Maloperation rate

<1%

Trigger Range

100% rated charging voltage

Display Screen

17 inch TFT colour screen

Measurement Display Precision

Better than 3%

Tested Product Residual Voltage

<5kV

Voltage Measurement

Use damped impulse divider

Oscilloscope

TBS series, optional

Insulation Strength

≤500V RMS(common to ground refer PE)

General Parameters

Power Source

AC220V±10%, 50/60Hz

Environment Temperature

-10±40ºC

Relative Humidity

35%-85%RH(no condensation)

Ground Resistance

≤0.5Ω

Structure Type

Open structure,independent control cabinet and main body, optical fiber connection

Control Console

1.8M(length)*1.2M(height)*1M(width)

No conductive dust, no fire and explosion hazards, no corrosive metal and insulation gas, waveform of power voltage is sine wave, distortion <5%.

Equipment model selection parameters

Nominal Total Voltage kV

Class

Impulse Capacitance (μF)

Impulse Level Capacitance(μF)

Total Charging Power(kJ)

Application

±300~±900

3~9

0.133~0.111

0.4~1

6~45

35~110kV

±1000~±1600

10~16

0.05~0.0937

0.5~1.5

25~120

<220kV

±1800~±2400

9~12

0.056~0.0833

0.5~1

90~240

220kV~500kV

±2800~±3200

14~16

0.0357~0.0625

0.5~1.5

140~320

±3600~±4800

18~24

0.0278~0.03125

0.5~2

80~240

Minimum time difference between pulse

30s

40s

Generator capacity per level

≤1600kV use 100kV single side charging 1

≥1600kV use 100kV double sides charging

Company Profile
Kiyu Power is a high-tech enterprise professionally engaged in R & D, manufacture and marketing of power testing products, instruments, power industry automation systems for 20 years.We export completed set to Korea, Singapore, Vietnam, India, Ecuador, Paraguay, Pakistan, Philippines, Russia, Italy, Austria, Portugal, Chile such as PD test system, impulse voltage generator, temperature rising test system, transformer comprehensive test system, cable fault detect system and varies of instruments for transformer, circuit breaker, switchgear, lightning arrestor, insulator, cable, battery,SF6 gas and so on.
