High-Speed Durable and Stable Log Saw Machine for Long-Term Use

Product Description

Five major innovations in this machine: Automatic length equalization with no cumulative error; German sharpening technology to ensure the quality of the blade; Linear guide rail lifting and lowering, easy to operate and maintain; Adopting motion control, saving electricity >20%; Using partition wall design, clean and safe to use.
Scope of Application:
Suitable for automatic cutting of facial tissue, cotton soft towel, coreless toilet roll, etc.
Product Description

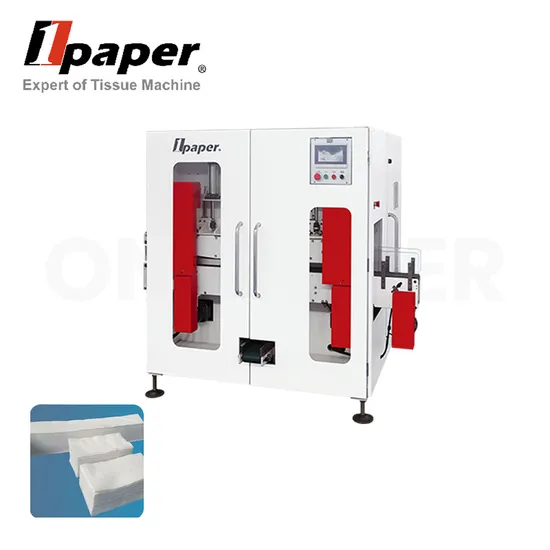

High-Speed Full Servo Log Saw Machine
Application: Fully automatic cutting for soft tissue,box tissue,cream tissue and coreless toilet paper.
Features: The design of separating the cutter block from the paper pressing and conveying mechanism
(creative) is adopted. The telescopic scrap dropping design is adopted for head and tail removing.
The whole machine adopts the design of full servo motion control. The large round knife can be grinded till outside diameter of ¢ 430mm.
Value: There are no scraps in the machine, avoiding fire due to untimely clean-up. The simple operation for production changing enhances production efficiency. The utilization rate of the large round knife is high.
Main parameters: Production speed: maximum 360 cuts/minute.
Product Parameters

Tem/model		OPQ-358S
Original paper width		260-2000mm
cutting speed		0-360cuts/min
Diameter of blade		Ф610mm
Blade speed		1350R/min
Cutting length		90-300mm
Finished products height		20-150mm(20-250mm)
Cutting waste size		≥20mm
Total Power		6.02KW
Power supply type		Three-phase five-wire 380V 50Hz
Air supply		0.5-0.6MPa
Outline dimensions		2000mm×1880mm×1960mm
Machine weight		≈2000Kg

Detailed Photos
Printing Samples
Company Profile Found in 2010
ZHEJIANGONEPAPERSMARTEQUIPMENTCO.,LTD.is a national high-tech enterprise and Zhejiang Specialising in ultra new enterprise . Focus on tissue paper equipment for 15 years, the main automatic tissue paper production line, automatic cotton soft production line, etc. It has rich experience in new factory preparation consulting of tissue paper. production workshop layout design, digital factory construction, production line transformation and upgrading, etc. it has sold well as 1000 customers in Kimberly-Clark, Vinda,Hengan, Gold Hongye and other 1000 customers in 60 countries or regions, etc., and is highly recognized.
ZHEJIANGONEPAPERSMARTEQUIPMENTCO.,LTD.
Our Workshop
Exhibition
Our Parthers
Certification
FAQ Q: Are you manufacturer or trading company?
A: We are the professional machinery manufacturer in packaging and printing industry for 15+ years covering an area of 8,000 square meters,have more than 104 workers.
Q: Where is your factory located? May I have a visit?
A: Warmly welcome! Our factory is located in Wenzhou city, Zhejiang Province, China.
Q: What is the advantages of your factory compared with other suppliers?
A: 1. Technical strength: We are the leaders of the Chinese packaging machinery industry. We have strong technical strength and can develop and produce high -quality and efficient packaging machines. we currently have 9 successful packaging and printing projects. We can provide you with a full set of solutions to meet the packaging needs of different industries. 2. Product quality: From accessories to finished products, we have strict quality control and detection processes to ensure the stability and reliability of the product.Providing solutions and services to 1,000+ customers across 50+ countries and regions, earning high recognition. Our product repurchase rate reaches 72.8%, with the highest individual customer repurchasing 27 times. Leading sales in the Arab and North African regions. 3. Product customization: We can customize design and production according to the needs of customers to meet the special requirements of different customers. Provide personalized solutions to help customers improve production efficiency and reduce costs. 4. After -sales service: After -sales service is one of our biggest advantages. We provide timely and professional technical support and maintenance services to ensure that we can quickly respond to the needs of customers, solve problems, and ensure the normal operation of the equipment. 5. Innovation ability: We continue to carry out technological innovation and product upgrade to meet the changes in the market and customer needs. Continuously improve the performance and functions of products and provide customers with better solutions.
Q: What information should I provide if I want to get a quotation?
A: First, paper type which you wanna make, second, the size of paper bag, third, the thickness of paper bag, after collect the basic information, then we will suggest the right machine model to you!
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation.
Q: How could we do after one year warranty period?
A: We also can do service for you, but you need pay salary for my technician 100-150USD/day.
Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.

---
