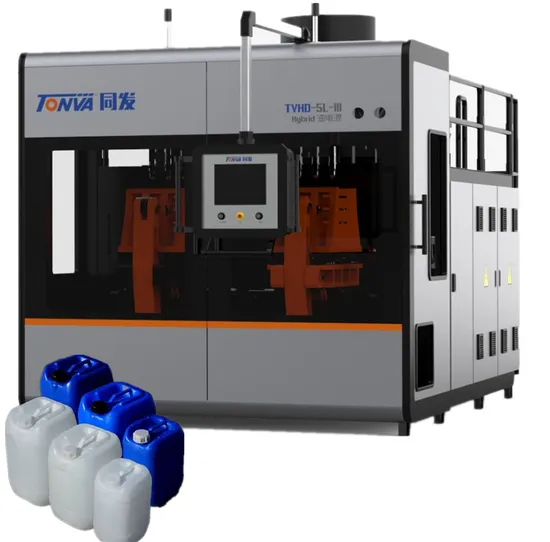

How Much of Jerrycan 20L Bottle Blow Molding Machine?

Product Description

Double stations One cavity(20L) Single layer Automatic trimming: Neck/Bottom Output: around 100-200 BPH Power supply: 380VAC 50HZ Water cooling: 20ºC (5HP Water chiller) Air source: 0.6Mpa, 0.8m³/min (1.2 m³/min Air compressor)

1	Unit	TVHD-20L
Raw Material	PE/PP/PA/PVC/PETG/ABS/PS/EVA/TPU etc
Machine Weight	T	17
Machine (L*W*H)	m	5.0x5.9x2.35
Extrusion System
Diameter of Screw	mm	100
Screw L/D ratio	L/D	28:1
Plasticizing Capacity	Kg/h	160
Heating Zones	pcs	8
Heating Power	kw	28
Screw Motor	kw	7.5
Die Head
Heating Zones	pcs	3
Heating Power	kw	8
Power Consumption
Air Pressure	Mpa	0.6-0.8
Air Consumption	m3/min	1
Cooling water	m3/h	2
Oil pump power	kw	18.5
Total Power	kw	80-113
Clamping System
Clamping Distance	m	350
Sliding Distance	mm	650
Open Stroke	mm	400-750
Mould Platen Size	mm	500x600
Clamping Force	kn	150
Working Condition
Piston Type Air Compressor	kw	15
Water Chiller	HP	8

Dear manager
hi,how are you?thanks read our products information, i feel honored.
our company establish at 1993,so have stably good experienced.manufactur from 0.1ml-5000L hollow products,so hope we can help you choose which type of machine you want.if you interesting,pls contact with me.i'm rita
sincerely
Zhejiang Tonva Plastics Machine Co.,LTD.

Website:tonva-machine.en.made-in-china.com
Add:No.30,Huihai Road,Binggang Industrial Zone,Shamen,Yuhuan,Zhejiang,P.R.China.

---
