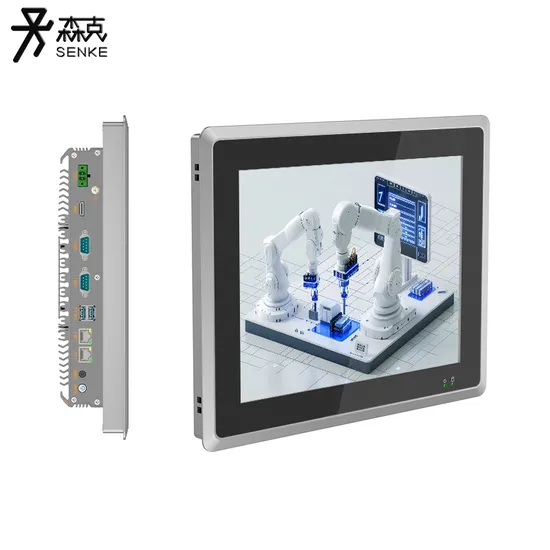

| Senke Industrial PC | SK-K10DR | SK-K12DR | SK-K15DR | SK-K17DR | SK-K19DR |
| Motherboard | Confirmuration | J6412,J1900,J4125,i3-7100U,i5-7200U,i7 |
| Interface | WiFi,3/4G module | 802.11b/g/n(optional), Support3g/4g(optional) |
| HDMI | 1*HDMI output |
| USB | 4*USB3.0 |
| Network | 2*RJ45 with 1000 Base-T |
| Com | com(RS485)*2 |
| Power supply | 1*DC lock phoenix terminal, Support 9-36V |
| Audio output | 1*3.5mmaudio |
| Other | 8*GPIO(optional) |
| Display | Screen type | 10.4 LCD | 12.1 LCD | 15 LCD | 17 LCD | 19 LCD |
| Resolution | 1024*768 | 1024*768 | 1024*768 | 1280*1024 | 1280*1024 |
| Size(W*H) | 210.4*157.8mm | 245.7*184.3mm | 304.1*228.1 mm | 376.3*301.1mm | 376.3*301.1mm |
| Contrast ratio | 500:1 | 500:1 | 700:1 | 900:1 | 900:1 |
| Brightness | 200cdm2 | 200cdm2 | 250cdm2 | 250cdm2 | 250cdm2 |
| Brightness Optional | 1000cdm2 | 1000cdm2 | 1000cdm2 | 1000cdm2 | 1000cdm2 |
| Screen ratio | 4:3 | 4:3 | 4:3 | 5:04 | 5:4 |
| Structure | Front and back cover | Aluminum |
| Craft | Glass frame paste, aluminum die casting |
| Color | Black, grey |
| Heat dissipasion | Fanless aluminum fin heat dissipation |
| Panel indicator light | Power state, hard disk state |
| Whole size | 281*228*56.8mm | 315*254*56.8mm | 304*294*55.3mm | 404*341*56.3mm | 445*375.6*59.3mm |
| Touch screen | Type | Projected capacitive touch screen |
| Touch point | 10 point touch |
| Physical Resolution | 4096x4096 |
| Response time | <5ms |
| Accuracy | <2.5mm |
| Transparency | ≥90% |
| Protection | The surface is coated with 1:1 PVC protective film |
| Others | Working environment | -20ºC~70ºC; Humidity: 10%~90% |
| Storage environment | Temperature: -40ºC~80ºC; Humidity: 10%~90% |
| Installation ways | Embedded,VESA100*100mm |
| Power consumption | 24W | 25W | 33W | 34W | 37W |
| Accessories | Manual | User Manual, certificate of qualification, warranty card |
| Bracket | wall mounted bracket, embedded bracket, desktop bracket(optional) |
| Adapter | Power adapter |
