CNC Plasma Cutting Machine with Power Source 120A

US$1,650.00
1-4 Pieces
US$1,450.00
5+ Pieces

Basic Info.

Customized
Customized
Layout
Horizontal
Cutting Material
Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
Automatic Grade
Automatic
Power Source
Electric
Cutting Mode
Plasma Cutting
Motor
Stepper Motor
System
F2100
Thc
F1621
Transport Package
Wooden Case
Specification
3550mm*300*260mm
Trademark
JIAXIN
Origin
China
HS Code
8456401000
Production Capacity
20sets Per Month

Product Description

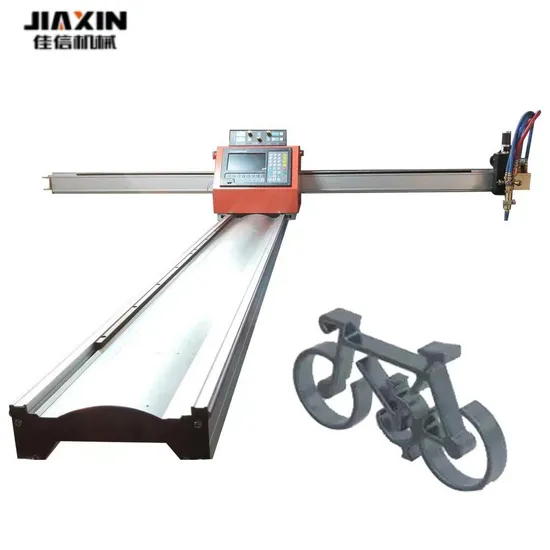

Portable CNC Plasma And Flame Cutting Machine
This Portable cnc plasma cutting machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other non-ferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
Suitable for sheet processing, do word, etc., and other advertising equipment (vacuum molding machine, engraving machine, slotting machine, etc.,) the formation of advertising word processing line. Dozens of times higher than that of traditional craft processing efficiency.
Feature
1. Effective Cutting length:2000-6000mm can be customized according to user requirements
2.Cutting graphics:programmable cutting line and arc constitute any plane shape parts
3. Language:Support 19 languages
Specification
Technical Specification
Model
JX-1530
Effective cutting range(mm)
1500×3000mm
Cutting speed (mm/min)
50-4000(max. 4000)
Input power source
380v±10% VAC,50/60HZ,three phase
Input Machine body
220V±10%V AC, 50/60HZ, Single phase
Flame Cutting thickness (mm)
6-80 (Oxygen + acetylene or propane)
Plasma cutting thickness(mm)
0.5-30mm (According to your plasma power source)
Torch height controller
F1621
Flame cutting gas
Oxygen+ propane or acetylene
Plasma cutting gas
compressed air
Cutting torch
One piece flame cutting torch and one plasma cutting torch with plasma power source
CNC controller system
F2100B
Motor
Leadshine Stepper motor and drive
Operation precision
±0.2mm
Guide length ×guide width ×guide thickness (mm)
3500×273×60
Nesting software
StarCam
Gas pressure (Mpa)
0.5
Cutting tool Conversion Kit
Oxygen(flame) and plasma cutting machine spare parts can change easily.
