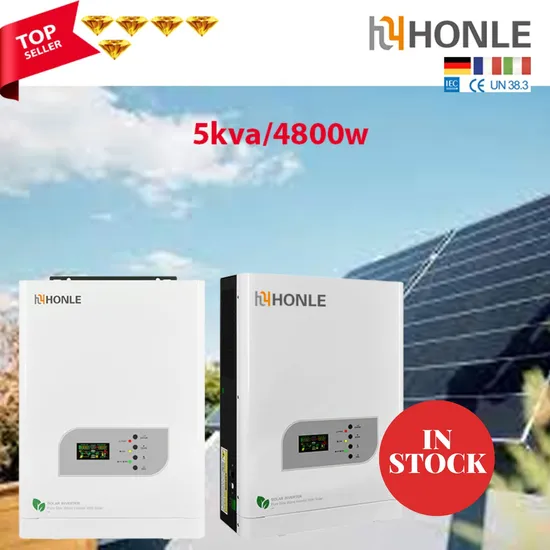

Factory Price High-Efficiency 5kw Hybrid Solar Inverter with Battery Charger

Product Description

Product Description
Honle Solar Off-Grid 800w-10000w Hybrid Inverter with 98% High Effiency MPPT
Experience reliable and clean AC power output with our Pure Sine Wave Inverter. Designed to meet your power quality and reliability needs, this inverter is perfect for residential and commercial applications.
KEY FEATURES:
1. Pure Sine Wave Output
2. Can Support WIFI/GPRS
3. MPPT Efficiency max 98%
4. Optional built-in MPPT/PWM Solar Charge Controller (30A-120A)
5. DC Start and Automatic Self-Diagnostic Function
6. Automatic Signal to Start Generator
7. High Efficiency Design for Optimized Battery Performance
8. Selectable Charging Current for Versatile Applications
9. AC Start-up Voltage Auto Restart Function
Product Parameters

Module Type	1012	2024	3024	4024	5024		6048	8048	10048	12548
AC Input Voltage	220VAC (standard)
Input Voltage Range	154-264VAC±3V(ormal Mode) 185-264VAC±3V(UPS Mode)
Input Frequency	50/60Hz±5%
Rated Power	800W	1600W	2400W	3200W	4000W		4800W	6400W	8000W	10000W
Output voltage under inverter	220VAC±10%
Output frequency in inverter	50HZ / 60HZ±1%
Output	pure sine wave
Battery Type	External lead-acid battery or water battery or lithium battery
Voltage of battery	12VDC	24VDC/48VDC					48VDC
Battery charging voltage	13.7VDC	27.4VDC/54.8VDC					54.8VDC
Maximum photovoltaic array power	400W	24V: 1600W 48V: 3200W					60A: 3200W 120A: 6100W
PV Input voltage range (PWM/MPPT)	PWM:15V-30VDC	24V: MPPT 30V-150VDC / PWM 30V-60VDC 48V: MPPT 60V-150VDC / PWM 60V-105VDC					48V: MPPT 60V-150VDC
Maximum open circuit voltage of photovoltaic display	30VDC	24V: MPPT 150VDC / PWM 60VDC 48V: MPPT 150VDC / PWM 105VDC					48V: MPPT 150VDC
Optimal Vmp operating range	PWM:15-20VDC	24V: MPPT 30-105VDC / PWM 30-35VDC 48V: MPPT 60-105VDC / PWM 60-65VDC					48V: MPPT 60-105VDC
Maximum solar charging current	30A	60A					60A / 120A
Maximum AC charging current	20A	19A/9A	30A/15A	38A/19A	48A/24A		29A	38A	48A	60A
Time of conversion	≤10ms(UPS model)/≤20ms(INV model)
Standby power consumption (W)	Toroidal Transformer
Protection Function	Mains off: There is no fuse switch to protect the input over current
	Inverter: overload protection, short circuit protection, low voltage protection, (battery back connection is optional).
Status display	LED display						LED display
Sound prompt	Buzzer alarm sounds are different according to different fault codes, which are distinguished by short and long tones
Operating temperature	0ºC~40ºC
Storage temperature	-15ºC~45ºC
Relative temperature	-10ºC~90ºC No condensation
Noise	<45dB

Application
Company Profile
Honle Group, located in Zhejiang China, is a globally recognized and dependable supplier of sustainable, eco-friendly energy storage solutions. With more than two decades of experience in electric and new energy industry. Honle Group has established branches in Russia, Uzbekistan, UAE, Indonesia, Tanzania, Cote d'Ivoire etc. With protracted and stable products and services, Honle is solidifying his reputation as a renowned supplier worldwide.
Our state-of-the-art international production equipment boasts an annual production capacity of 30,000 square meters, and we are open to negotiating maximum capacities for our power solutions. Honle's new energy power solutions and battery products find wide applications in various traditional household energy storage, power walls, commercial energy storage systems, and other dynamic information power fields.
Honle Group has established more than 100 agents in China, and established Honle International Tanzania Co., Ltd. and Honle International Uganda Co., Ltd. abroad.
At the same time, offices and general agents have been established in more than 30 countries and regions including Indonesia, Russia, Uzbekistan, Nigeria, and the United Arab Emirates.Production Line
As an innovation-oriented company, our production line is equipped with the latest technology and machinery, as well as high level testing machine and devices. We have a team of experienced and skilled workers who oversee the production process and ensure that every product meets the strict quality standards.
Certifications
Packaging & Shipping
FAQQ1.Do you have any MOQ limit?
A: Yes. In general, MOQ is 1 set.
Q2 How about your delivery time?
A: For the big capacity, we can deliver around 25 days. Depends on the items and the quantity of your order. It usually takes 1-2 days if in stock.
Q3. Can you OEM and ODM Service?
A: Yes, we can provide free OEM Service, and ODM Service. We can design the packaging and logo according to your requirements.
Q4. Do you test all your goods before delivery?
A: Yes, all our products have been tested before delivery.
Q5.Tell me the standard of package?
A: We use cartons and pallets for protection.
Q6.Could you offer Form A or C/O ?
A: No problem. We can prepare relative documents to origin affairs office or other office to apply for related certificates for free.

---
