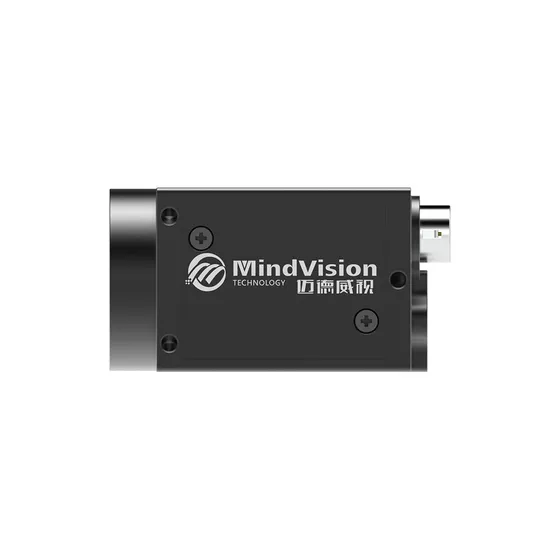

Mv-Ge502c/M 5MP 24fps Gigabit Industrial Gige Vision CMOS Camera for Quality Inspection

Product Description

GigE Series Features Support 100 meters transmission or POE (optional).
Compatible with gige vision standard.
With hardware image processing acceleration.
Support multiple cameras to work at the same time.
Data packet retransmission technology to ensure reliable data transmission.
Provide SDK, easy to use and convenient.
Support external trigger and flash.
SDK supports Windows and Linux systems.
SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV. Camera name can be modified to distinguish multiple cameras easily . Product Paramenters

Product Item	MV-GE502C/M 5MP 2592*1944 24fps Gigabit Industrial Machine Vision Camera Gige Vision Camera For Quality Inspection
Model Number	MV-GE502C/M
Color	Color & Monochrome can be selected
Pixel	5MP
Resolution	2592*1944
Frame Rate	24fps
Sensor	1/2.5"AR0521 Global Shutter CMOS
Pixel Size	2.2μm
Exposure Time	0.02~155.5ms
Pixel depth	10bit
Lens Mount	Default C-MouthCS-Mouth optional
GPIO	1 way optical isolation input, one way optical isolation output; Optional 3 input 4 output
Data interface	RJ45 Gigabit Ethernet interface
Frame Buffer	32M Bytes
User-defined data area	2K Bytes
Power Requirements	9~12V/POE48~57V(POE is optional)
Dimensions	29*29*40(mm)
weight	75g

Product Optional Model

Global Shutter Optional

Model Number

Pixel

Resolution

Frame Rate

Sensor Size

Pixel Size

Minimum Exposure Time

MV-GE31GC/M

0.36MP

752*480

108fps

1/3

6.0μm

0.065ms

MV-GE34GC/M

0.3MP

640*480

387fps

1/4"

4.8μm

0.004ms

MV-GE50GC/M

0.48MP

800*600

119fps

1/3.6"

4.8μm

0.009ms

MV-GE130GM

1.22MP

1280*960

60.6fps

1/3"

3.75μm

0.016ms

MV-GE131GC

1.22MP

1280*960

72fps

1/3"

3.75μm

0.014ms

MV-GE134GC/M

1.3MP

1280*1024

91fps

1/2"

4.8μm

0.008ms

MV-GE200GC/M

2.0MP

1600*1200

60fps

1/1.8"

4.5μm

0.016ms

MV-GE202GC/M

2.3MP

1920*1200

51fps

2/3"

4.8μm

0.005ms

MV-GE231GC/M

2.3MP

1920*1200

40fps

1/1.2"

5.86μm

0.02ms

MV-GE501GC/M

5.0MP

2448*2048

24fps

2/3"

3.45μm

0.022ms

MV-GE502GC/M

5.3MP

2592*2048

22fps

1"

2.2μm

0.005ms

Rolling Shutter Optional

Model Number

Pixel

Resolution

Frame Rate

Sensor Size

Pixel Size

Minimum Exposure Time

MV-GE130M

1.3MP

1280*1024

30fps

1/2"

5.2μm

0.032ms

MV-GE130RC

1.22MP

1280*960

60.5fps

1/3"

3.75μm

0.016ms

MV-GE300C

3.0MP

2048*1536

12.7fps

1/2"

3.2μm

0.05ms

MV-GE502C/M

5.0MP

2592*1944

24fps

1/2.5"

2.2μm

0.02ms

MV-GE630C/M

6.3MP

3088*2064

18.7fps

1/1.8"

2.4μm

0.025ms

MV-GE1000C/M

10MP

3664*2748

8fps

1/2.3"

1.67μm

0.043ms

MV-GE1400C/M

14MP

4384*3288

8fps

1/2.3"

1.4μm

0.023ms

MV-GE1600C/M

16MP

4608*3456

7fps

1/2.3"

1.34μm

0.037ms

If you don't know how to choose the model,Contact us,our engineers can recommend the suitable for you.

Case Show FAQ Q. Can you provide SDK? A:Yes,we provide SDK,and it supports secondary development. Q. How to choose the color of industrial camera? A:If you do size measurement without detecting the color of the image, you can choose monochrome camera. Monochrome camera transmits a grayscale image, which is more conducive to size measurement.If you need to identify product chromatic aberration, such as comparison, a color camera is suitable for you. Q. How to choose the shutter of industrial camera? A:If you need to shoot still objects, we recommend that you choose a camera with a rolling shutter, which will be more cost-effective;If you need to shoot moving objects, global shutter camera much better for you. Q. How to choose the shutter of industrial camera? A:If you need to shoot still objects, we recommend that you choose a camera with a rolling shutter, which will be more cost-effective;If you need to shoot moving objects, global shutter camera much better for you. Q. What is the maximum number of cameras supported to work at the same time? A:As long as the trigger source is the same, you can take pictures synchronously. Q. What is the difference about CCD and CMOS? A:CCD has a better image quality than CMOS, but the price and power is higher.CMOS sensor has the characteristics of high sensitivity and high integration. Q. Support after-sales? A:Yes, Any questions about industrial camera can contact us.

---
