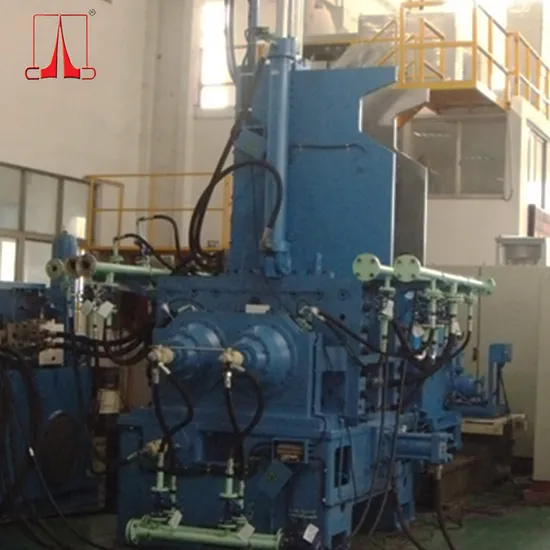

160L Banbury Internal Rubber Mixer Machinery

Product Description

Quick Details
Condition: New
Type: Rubber Mixer
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Lanhang
Model Number: X-160L
Voltage: 380V
Power(W): 400000
Dimension(L*W*H): 1600x1300x3700 mm
Weight: 55 T
Certification: CE, SGS, lAF, CNAS
Warranty: 1 year
After-sales Service Provided: Overseas service center available
Rubber Machine Name: 400L Banbury Mixer
Plastic Banbury Color: Green / Blue / etc. (customize available)
Banbury Mixer Material: Cast Iron / Steel
Motor for the Internal Mixer: Frequency Control or not
Big Banbury Mixer Rotor: Tangential
Thickness of Abrasion-resistant Alloy: 5 mm
Drive of Top Mounted Hammer: Pneumatic or Hydraumatic
Hardness of Mixer Machine Rotor: 50 HRC
Packaging & DeliveryPackaging Details:Delivery Detail:

Wood Pallet & Film Wrap (Big Banbury Mixer)

90 Working Days Since Down Payment (400L Banbury Mixer)

Why Choose Intermeshing Banbury Mixer Products from Lanhang
1. We're founded in 1992, with more than 20 years' professional experience
2. Fourtune global 500 companies' supplier, such as Dow Corning, Shin Etsu, Blue Star, Wacke, Momentive, etc.
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. International CE, SGS, IAF, CNAS certification
5. National high-tech enterprise / products
6. We own various National Patent for Inventions for rubber & plastic machinery
7. ISO9001:2008 management


Main Parameters of Our Intermeshing Banbury Mixer

ITEM/MODEL	LX-1.5L	LX-3L	LX-10L	LX-35L	LX-55L	LX-75L	LX-100L	LX-160L	LX-190L	LX-270L	LX-410L
ROTOR TYPE	TANGENTIAL ROTORS
RAM DRIVER	HYDRAULIC or PNEUMATIC
Total Volume	1.5L	3L	10L	35L	55L	75L	100L	120L	160L	270L	410L
FILL FACTOR	75%
MainRotor Speed(r/min)	6~6 8~80 10~100	6~6 8~80 10~100	4~40 5~50 6~60
Rotor speed ratio	1:1.17
Power(kw)	22 37 55	37 55 75	75	110	132	160	220	400	500	1250 1500	1250*2
Weight(T)	2,3	3	6	9	12.5	16	22	28	36	45	60

ITEM/MODEL

LH-1.5Y

LH-3Y

LH-10Y

LH-35Y

LH-55Y

LH-90Y

LH-135Y

LH-160Y

LH-190Y

LH-250Y

LH-320Y

LH-410Y

ROTOR TYPE

INTERMESHING ROTORS

RAM DRIVER

HYDRAULIC or PNEUMATIC

Total Volume

1.5L

3L

10L

35L

55L

75L

100L

120L

160L

270L

410L

FILL FACTOR

65%

MainRotor Speed(r/min)

6~60 8~80 10~100

6~60 8~80 10~100

4~40 5~50 6~60

Rotor speed ratio

1:1

Power(kw)

37 55 75

55 75 90

110

160

250

280 350 450

500 630 750

630 750 800

750 1000 1250

1250 1500

1250 1500 1800

2500

Weight(T)

2.8

3.5

6.6

9.5

12.9

16.5

22.5

28.5

37

46

61

79

Application of Our Banbury Mixer
This intensive mixer has a wide range of applications, including in mixing and refining Raw materials, such as raw rubber, synthetic rubber, resin, asphalt, cellulose, PVC or EVA into even mixed stock. The body and structure of this machine are strong and durable, making it suitable for heavy-duty Rubber & Plastic mixing and refining operations.

Features of our Banbury Mixer
1. Intermeshing or tangential rotor
2. Rotors, mixing chamber, harmmer and parts which contacts with the material are overlayed with 5mm wear-resistant alloy (up to 50HRC)
3. Pneumatic or hydraulic type top mounted ram is optional
4. Falling type floating weight which is driven by gear and hydraulic oil tank with good sealing performance.
5. Inverted AC motor or variable speed DC motor is optional
6. Drop / side door discharging
7. Copper-ring and hydraulic sealing
8. 2-wing, 4-wing, 6-wing are available
9. Excellent dispersing effect
10. Best mixing rotor and chamber to guarantee 100% mixing effect
11. LG brand electrical parts, Mitsubishi brand PLC, ABB motor
12. Low noise, safe mixing
13. Maintenance friendly and long-life service

Description of Banbury Mixer
The Banbury Mixer, which is invented by Fernley H. Banbury, was introduced to the rubber manufacturing industry in 1917. The machine is called a compounder, mixer, or blender. It mixes components together that do not readily blend but require a lot of energy to become homogeneous. The mixer is a batch operation and is used to blend rubber and plastics or many different materials with additives.

Working Principle of Banbury Mixer
The materials to be blended are introduced through a hopper. A ram pushes the materials into the mixing chamber. Two counter-rotating rotors provide the mixing action, much like double dough hooks. The blended batch is discharged through an opening in the bottom of the mixing chamber to the next processing step. Improvements made over the years include many design changes to enable easier operation and maintenance.
Heat transfer is closely controlled in the modern Banbury Mixer. The rotors generate a lot of friction with the material, so mixing is generally an exothermic process, giving off heat to the environment. Some mixes absorb heat and become cooler, however. In many processing operations, heat may be added to the system.
Internal pressure is also controllable, and many mixing operations occur under increased pressures and temperatures. This capability is necessary for the mixer to act as a reactor chamber in the manufacture of many polymers. Compounding of rubbers or rubber recycling is often spoken of as mastication and softening. While those terms imply the first steps of human digestion, the rubber is usually not chemically changed.

Packaging & Shipping
Wood Pallet & Film Wrap

Our Services
1. One year warranty
2. Engineers available to service machinery overseas (installation, debugging, commissioning and maintenance.)
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. Life-long technical support

---
