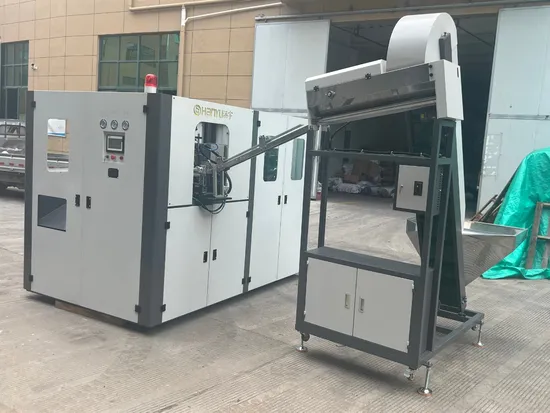

2000 -2200 PCS/Hour Blow Molding Machine

Product Description

HY-2000 is the fastest liner blow molding machine in mainland of China by now. HY-2000 reaches around 2000BPH for 350ML bottle. Its baking tunnel is separated from the blow station so that time for mold opening is shortened with a result of speedy blowing and high output, damage to machine is lessened so as to keep reliable performance and prolong service life, as well as machine runs more smoothly and steadily.
HY-2000 is controlled by PLC. The whole process from preform feeding to bottle discharging is completed automatically with advantages of labor saving and no pollution. HY-2000 consists of three main parts: preform loading system, Heater channel & blow station.
.
MACHINE FEATURES:
1. Machine use of advanced PLC control system , stable in performance, automatic preform feeding .
2. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater
3. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
4. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure. 5. No contamination and low noise with the air cylinder to drive the action instead of the oil
pump.
6. Air route design is divide into two parts ,
7. Ideal effect of the chilling with the chilling system
8. Low rejection rate: less than 0.3percent

Container	Max Volume	L	2
	Max Neck Diameter	mm	38
	Max Container Diameter	mm	105
	Max Container Height	mm	335
	Cavity		2
	Theoretical Output	bph	2000-2200(*)
Electrical	Clamping force	KN	300
	Heating Power	KW	20
	Max Heating Power	KW	35
Air Compressor	Operating Pressure	Mpa	0.7
	Low Pressure Consuming	L/min	1000
	Blowing Pressure	Mpa	3.0
	High Pressure Consuming	L/min	1200-1400(**)
Chiller	Pressure	Mpa	0.3-0.5
	Temperature	ºC	8-10
	Flow Rate	L/min	30
Machine	Machine Size	m	2.2x2.0x2.03
	Machine Weight	Kg	2200
(**)Depending on bottle size, shape and weight. , (*)Depending on bottle size and operation conditions.

---
