Biological Injection Mobile Storage Tanks Insulation Aseptic Storage Tank for Pharmaceutical Industry

Product Description

Stainless Steel water Tank Series
Manufactured and accepted according to the requirements of GB150-98 Steel Pressure Vessel or JB/T4735-97 Steel Welding Normal Vessel.
Jhenten Quality Control :
1.The raw materaial plate was anlysised by our material anlysier to assure the quality.
2.The welding is argon arc weld(TIG) to avoid plate's oxidized.
3.After welding the the inner tank ,we will make a full water pressure test to check the welding joint.After welding the jacket ,the full water pressure test be done for jacket too.
4.After finishing the surface finish ,our people will make a surface roughness testing to assure the Ra data.
5.After agitator installment ,we will operate it to assure the function is good.
6.The nozzle's position 's confirm also is checked by our quality control people.

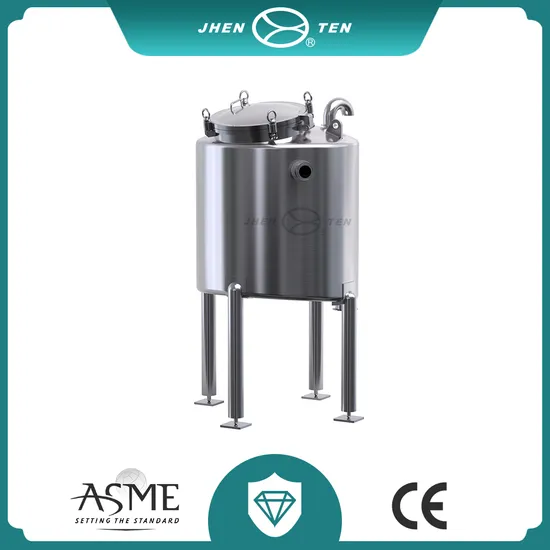

Stainless steel storage tank
Material:	SS304 or SS316L or Duplex stainless or 904L
Design Pressure:	-1 -10 Bar (g) or ATM B9
Work Temperature:	0-200 °C
Volumes:	100~30000L
Construction :	Vertical type or Horizontal type
Jacket type :	Dimple jacket, full jacket, or coil jacket
Structure :	Single layer vessel, vessel with jacket, vessel with jacket and insulation
Heating or cooling function	According to the heating or cooling requirement , the tank will have jacket for requried function
Opitional Motor:	ABB, Siemens, SEW or Chinese brand
Surface Finish:	Mirror Polish or Matt polish or Acid wash&pickling or 2B
Standard components :	Manhole,sight glass , cleaning ball
Optional components :	Vent filter, Temp. Gauge, display on the gauge directly on the vessel Temp sensor PT100, digital display on the control cabinet by instrument Temp sensor with control for heating and cooling Level gauge with digital display on the control cabinet by instrument Load cell Valves
Applications:	Wine, Beer Juices Food & Beverage Pharmaceutical Biotechnology & Laboratory Medical &Medical Device Chemical Industry Painting Industrial

Company Profile

Projects

Exhibition
QC process
cooperative partner
FAQ

Q: CAN I HAVE SAMPLES TO TEST?
A: Yes, we are pleased to supply samples to test and check quality, miled sample order is available. Please note, free samples is not acceptable.

Q: DO YOU HAVE ANY MOQ LIMITED?
A: Our MOQ is 1PC to supply new customers.

Q: WHAT'S THE LEAD TIME?
A: Sample: 20-25days. Mass production: 25-30days depend on the order quantity.

Q: HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE?
A: We ususlly ship by sea. DHL, UPS, fedex TNT are also acceptable.

---
