Inclined Hanging Drag Chain Mining Equipment Mining Machine Scraper Conveyor

Product Description

About Us Headquartered in Xinxiang City, Henan Province, China, domestic well-known screening and conveying equipment city, PK Machinery has enjoyed more than 50 steady years of successful growth, and now it has been widely acknowledged as a trustworthy and professional manufacturer in the field of bulk material handling equipment, including vibrating screen, vibrating feeder, belt conveyor, bucket elevator, screw conveyor, scraper chain conveyor and associated spare parts in complete specifications.
Product Description Product Description

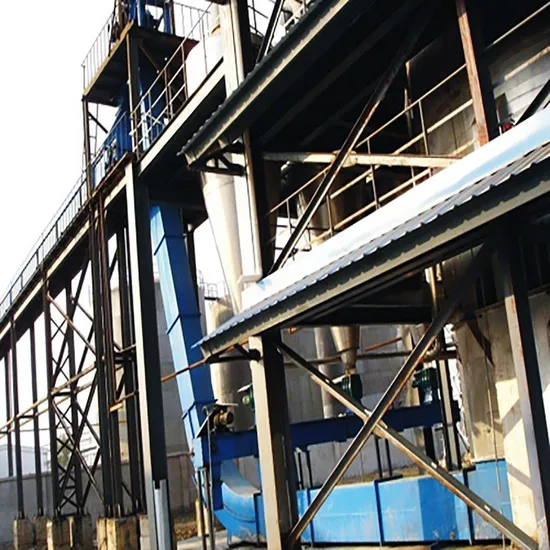

Incline scraper chain conveyor is bulk material conveying equipment, which consists of head section with driving device, connect section, tail section, tension device, as well as scraper and chains.By means of moving chains, it can continuously transport the materials in closed rectangular casing vertically or at a large incline.
The MC buried scraper conveyor is widely used in cement plant, coal, metallurgy, mining, light, construction, chemical, grain, power industries etc.
Operating Principle
When scraper chain conveyor machine transports material aslant, the internal friction caused by three parts:the pressure which comes from chains in conveying direction to the materials, the action which comes from the materials themselves and the gravity of the material. This friction ensures the stable situation between material layers, and it can overcome external frictional resistance which caused by moving materials in the trough and make materials transport as a a whole fluid.
Main Features
1.Totally enclosed structure, light weight, small volume.
2.Convenient installation and maintenance.
3.Vertical or large inclined transport from 30° to 90°.
4.Multiple material feeding point and discharging point.
5.Conveying distance is up to 40m with material temperature lower than 120ºC.
6.Widely used in cement plant, coal, metallurgy, mining, light, construction, chemical, grain, power industries etc. Product Parameters Technical Parameters

Model	Trough Width	Transport Speed	Material Bulk Density	Capacity	Conveying Height	Installation Angle
	(mm)	(m/s)	(t/m3)	(m3/h)	(m)	(degree)
MC16	160	---0.16 m/s ---0.20 m/s ---0.25 m/s ---0.32 m/s	0.2~1.8 t/m3	11~22	5~30m	---30° ---45° ---60° ---75° ---90°
MC20	200			15~30
MC25	250			23~46
MC32	320			46~74
MC40	400			55~110

Customer Visit
Packaging & Shipping
Producing Spot

---
