US$3,000.00-30,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Ring Die Pelleter
Bulking Machine Type
Twin Screw Bulking Machine
Transport Package
Export Wooden Case
Production Capacity
30000PCS/Year
Product Description
Product Description
This machine can grind all kinds of granular feed raw material like corn, sorghum, grains, beans , etc. this series of hammer mill has coarse and fine grinding two functions.
Can be equipped with self-cleaning impeller feeder , belt magnetic separation feeding and other many kinds of feeding way.
Without changing the screen , two kinds of grinding can be realized , separation feeding and other many kinds of feeding way.
Adopt concealed hammer rotor which can increase the efficiency by over 25%.
The whole machine drive part(including motor) select Switzerland and Japan High-quality bearings , guarantees the transmission high efficiency, the stability and low noise.

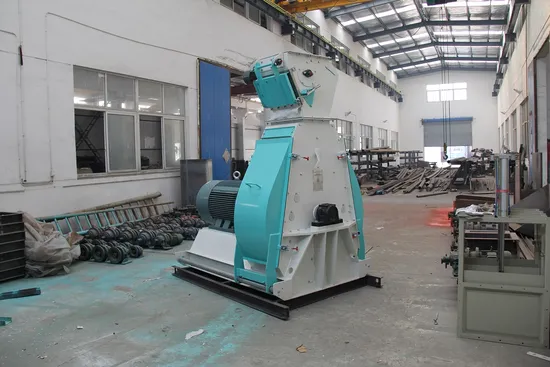

Detailed Photos
Product Parameters
Model
| Main Power (kw)
| Capacity (t/h)
| Speed of Rotor(rpm)
| Dia of Rotor(mm)
| Screen Hole(mm)
|
SFSP56X36
| 15-30
| 2-4
| 2970
| 560
| 3
|
SFSP56X40
| 30-37
| 2-3
| 2970
| 560
| 3
|
SFSP112x30
| 55-75
| 3-5
| 2970
| 1120
| 3
|
SFSP112X40
| 75-90
| 12-15
| 2970
| 1120
| 3
|
SFSP65X38
| 22-30
| 1-2
| 2970
| 600
| 1.2
|
SFSP65X45
| 45-55
| 2-4
| 2970
| 600
| 1.2
|
SFSP65X60
| 55-90
| 2-5
| 2970
| 600
| 1.2
|
