Hast and Pct Chamber Pressure Cooker Test Chamber High Pressure Testing

Product Description

Climatic Hast High Pressure Accelerated Aging Testing Chamber Price
Product Description Hast High Pressure Aging Testing Chamber is widely applied for the testing of sealing property for multi-layer circuit board, IC sealing package, LCD screen, LED, semi-conductor, magnetic materials, NdFeB, rare earths and magnet iron, in which the resistance to pressure and air tightness for above mentioned products can be tested out.

Model Number:	HAST-35
Internal Dimension W×D (mm)	350×450
External Dimension W×D (mm)	800×1250×800
Temperature Range of Saturated Steam (Operating temperature)	(Temperature Rangeof Saturated Steam:100°C~135°C) , Temperature Range: 120°C,100Kpa/ 133°C 200 Kpa; (143°C is special order)
Relative Pressure/ Absolute Pressure	Relative pressure: display values indicated on the pressure gauge Absolute pressure: Value that add 100 Kpa based on display values indicated on the pressure gauge (The actual value in the inner box)
Humidity of Saturated Steam	70%R.H.~ 100%RH steam humidity adjustable
Steam Pressure (Absolute Pressure)	101.3Kpa +0.0Kg/cm2 ~ 2.0Kg/cm2 (3.0Kg/cm2 is special standard)
Recursive Device	Steam Natural convection circulation
Accessories	Two layers stainless steel plate
Powder	AC 220V, 1PH 3 Lines ,50/60HZ ;

safety device:
1. Safety device for the pot: If the inner box is not closed , the machine can not start
2. Safety Valve: When the inner box's pressure higher than the machine's undertake value, it will self-relieve.
3. Double overheat protection device: When inner box's temperature is too high, it will alarm, and Automatic cut off the heating power.
4. Cover protection: The inner box's cover is made of aluminum alloy, can protect the worker from scald.
HAST pressure acclerate aging test chamber features:
1.Automatic adding water function, and automatic filling water upon the water short storage while testing.
2.Automatic operation to test process finished, easy to use.
3.Temperature control: LED digital temperature controller can make accurate testing of temperature setting, control and display.
4. LED digital timer, when the inner box's temperature reached the setting value, then start to time to ensure the test complete.
5.Accurate pressure: temperature chart always shows the inner box's pressure and relative humidity.
6.Water device is automatically discharge not saturated steam in order to achieve the best steam quality.
7.A integrated silica gel door gasket, air tightness is very good, and long operation life.
8.The inner box is mirror-polished , graceful and non-pollution

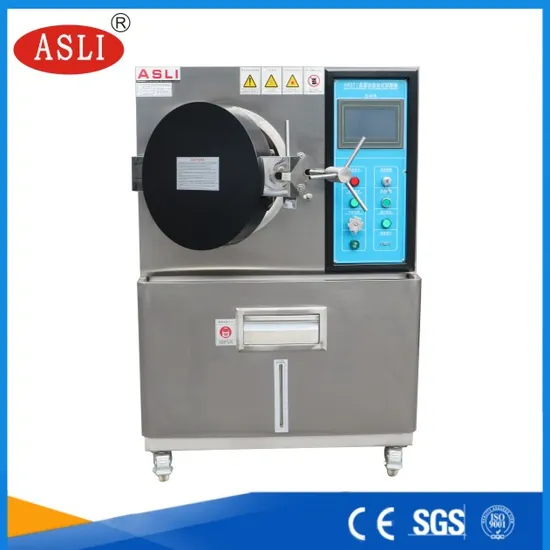

Pictures for reference:
If you want to learn more Climatic Hast High Pressure Accelerated Aging Testing Chamber Price knowledge, welcome to contact us at any time.

---
