| US$15,000.00 | 1 Piece (MOQ) |
| SPECIFICATION | MODELS | ||||

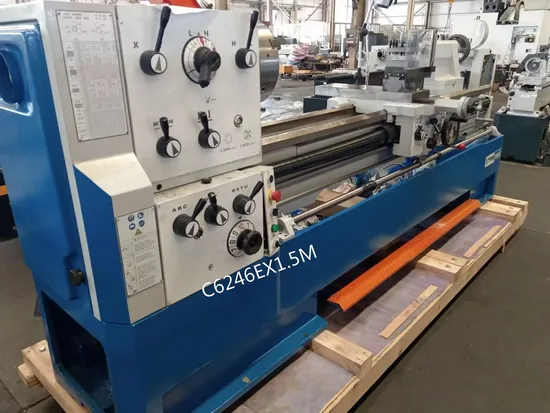

| C6241 1000,1500,2000 | C6246E 1000,1500,2000 | C6246E( BIG HOLE 1000,1500,2000 | |||
| CAPACITY | |||||
| Swing over red | 410mm(16") | 460mm(18") | 460mm(18") | ||
| Swing Over cross slide | 220mm(8-13/16") | 270mm(10-3/4") | 270mm(10-3/4") | ||
| Swing of gap | 640mm(25-1/8") | 690mm(27-1/8") | 690mm(27-1/8") | ||
| Length of gap | 165mm(6-1/2") | ||||
| Width of bed | 300mm(11-13/16") | ||||
| HEADSTOCK | |||||
| Spindle nose | D1-6 | ||||
| Spindle bore | 58mm(2-1/4") | 80mm(3-1/8") | |||
| Taper of spindle bore | No.6Morse | No.7Morse | |||
| Range of spindle speed | 12 changes, 25~2000r/min | ||||
| FEEDS AND THREADS | |||||
| of compound rest | 128mm(5") | ||||
| of cross slide | 285mm(11-1/4") | ||||
| Leadscrew pitch | 6mmOr4T.P.I | ||||
| Max.section of tool | 25×25mm(1×1") | ||||
| Longitudinal feeds range | 42 kinds, 0.031~1.7mm/rev(0.0011"~0.0633"/rev) | ||||
| Cross feeds range | 42 kinds, 0.014~0.784mm/rev(0.00033"~0.01837"/rev) | ||||
| Metric threads range | 41 kinds, 0.1~14mm | ||||
| Inch threads range | 60kinds2-112T.P.I | ||||
| Diametrical pitches range | 50kinds4-112D.P. | ||||
| Module pitches range | 34kinds0.1-7M.P. | ||||
| TALLSTOCK | |||||
| Dia of tailstock sieeve | 60mm(2-5/16") | ||||
| Travel of tailstock sleeve | 128mm(5") | ||||
| Morse taper of tailstock sleeve | No.4Morse | ||||
| MOTOR | |||||
| Power of main motor | 5.5kW(7.5HP) 3PH | ||||
| Power of coolant pump | 0.1kW(1/8HP) 3PH | ||||
| DIMENSION AND WEIGHT | |||||
| Overall dimension(L×W×H)mm | 2200x1080x1340mm(1m) 2750x1080x1340mm (1.5m) 3250x1080x1340mm (2m) | 2200x1080x1370mm (1m) 2750x1080x1370mm (1.5m) 3250x1080x1370mm (2m) | |||
| Packing size(L×W×H)mm | 2250x1120x1620mm(1m) 2800x1120x1620mm (1.5m) 3300x1120x1620mm (2m) | 2250x1120x1650mm(1m) 2800x1120x1650mm (1.5m) 3300x1120x1650mm (2m) | |||
| Net weight | 1580KG(1m) 1745kg(1.5m) 1900kg(2m) | 1645kg(1m) 1810kg(1.5m) 1965kg(2m) | |||
| Gross weight | 1844kg(1m) 2049kg(1.5m) 2229kg(2m) | 1910kg(1m) 2115kg(1.5m) 2295kg(2m) | |||
| No | C6241 (Standard Accessories) | C6246(C6246E) (Standard Accessories) | Quantity |
| 1 | jaws self centering chuck Φ250MM | 3-jaws self centering chuck Φ250MM | 1 Pcs |
| 2 | 4-jaws independent Φ300MM | 4-jaws independent Φ300MM | 1 Pcs |
| 3 | Foot brake | Foot brake | 1 Set |
| 5 | Face Plate | Face Plate | 1 Pcs |
| 6 | Auto lubrication system | Auto lubrication system | 1 Pcs |
| 7 | Full length splash guard | Full length splash guard | 1 Pcs |
| 8 | Operational Manual,tool box | Operational Manual,tool box | 1 Pcs |
