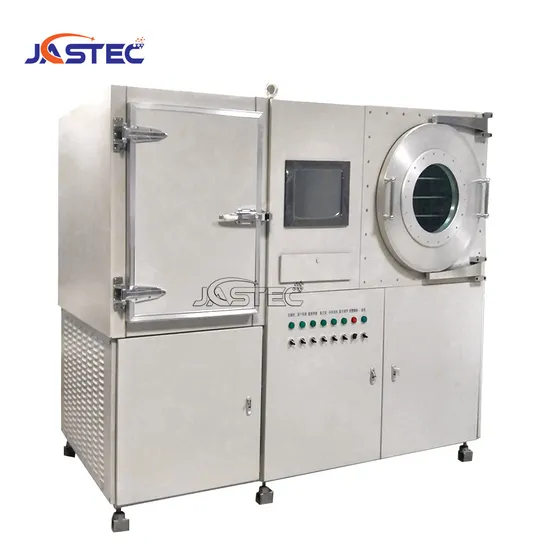

10 Square Meters 100kg /Batch Industria Industrial Vacuum Freezer for Food Vegetable Biological Freeze Dryer Mini Small Food Freeze Dryer

Product Description

Product Description
Lab scale freeze dryer or Pilot freeze dryer is used for sample test and freeze drying processing research, it can beuse all kinds of field, incldue food, meat, vegetables, fruit, pet food, herbs, sea food, etc. of course, it can be usedfor chemical field, too. Such as aerogel, Insulation brick, firebrick, battery and so on.Our lab scale freeze dryers have been exported to more than 20 countries, they are popular to all customers, somelyophilizer are used for processing research in university, institute department.
Vacuum freeze drying technology is the most advanced technology for food dehydration processing at present.Compared with the common drying method, the freeze-dried food produced with this technology features long periodof quality assurance, good re-hydration nature, good-looking color, good favor, taste, shape and high content ofnutritious components. The dried food basically remains unchanged in its volume and shape, it looks like sponge andhas no shrinking. This kind drying technology can be widely used in process of vegetables, fruits, condiments, aquaticproducts, biological products, medicine, beverage and etc.
Parameters of freeze dryer

Model	GZS- 0.1	GZS- 0.3	GZS- 1.0	GZS- 2.0	GZS- 5.0	GZS- 10	GZS- 20
Heating Plate Area (m²)	0.1	0.3	1.0	2.0	5.0	10	20
Rated Water Catching Capacity (kg/time)	1	3	10	20	50	100	200
Heating Plate Temperature Adjustment Range (ºC)	30~120	30~120	30~120	30~120	30~120	30~120	30~120
Minimum Working Pressure(Pa)	13	13	13	13	13	13	13
Empty Pumping Time (Atmospheric Pressure to100Pa, min)	8	8	8	11	11	12	12
Cooling Capacity (kT)	0.38	0.7	1.54	4.4	7.2	18	30
Installed Power(kW)	1.65	3.2	7.05	9	16	30	48

SZG series freeze drying equipment is manufactured on the basis of experience in areas such as heat transmission,vacuum, refrigeration, pressure vessel manufacturing and automatic control, integrated international advancedtechnology.According to the loading capacity of product and its applicability, it can be divided into small(includingexperimental), medium and large freeze drying equipment.
other products
The advantages of small freeze dryer:
1. Eficient in heating plates. The material of heating plates is aviation aluminum after being anodized on the surace, releasing over100% heat from the product by radiation. This makes heat more uniform and complete.
2. Automatic control system. Advanced inteligent control system keeps the system running stably and reliably in a longtime. Furthermore, simple operation can be much easier to handle.
3.Radiant heating There is a certain distance between the tray and the heating plate, not directly accepted, the product is heatedevenly. good quality. Freeze Customer
Packaging & Shipping
Company Profile
Jastec(Shanghai) Technology Co., Ltd is a professional supplier of food deep processing (include food additive) machinery. It integrates develop, sales, after-sale services as a whole, being a professional supplier for extraction equipment, drying equipment, mixing equipment, grinding equipment and turnkey project for food(include food additive)and agriculture industry etc.

---
