Semi Automatic Screen Printing Machine for Disposable Fast Food Box Snack Box

Product Description

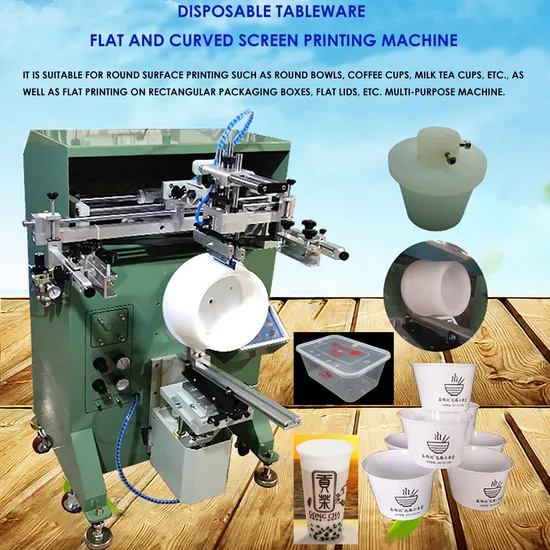

Semi Automatic Screen Printing Machine For Disposable Fast Food Box Snack Box
Machine Introduction:
This is a cost-effective screen printing machine with full pneumatic drive mode. It can be used when connected to household electricity and air compressors. The stroke of imported rodless cylinder is 400MM. The limited printing arc length is 350MM. The printing stroke is adjustable, suitable for all kinds of heat preservation. Cup, bottle, cylindrical product printing; at the same time, the fixture can be replaced to adapt to flat product printing;
It is suitable for surface printing of cylindrical, oval and flat products made of plastic, glass, ceramics, wood, metal and other materials. Printed products such as: lipstick shells, cosmetic bottles, detergent bottles, beverage bottles, cups, filters, jars, etc. This machine is assembled with all imported electrical components, so that its accuracy is at the same level, and the service life of the machine is greatly extended.
efficiency.
Machine Features:
1.The microcomputer intelligent IC cooperates with the light touch panel to compile the action program control, which is easy to operate, and the action is accurate and reliable.
2.Built-in four-digit automatic counter.
3.The printing stroke and speed are adjustable to meet different printing requirements.
4.It has three printing functions: round, flat and flat.
5.Automatically scrape ink, return ink, lift the worktable, etc., which not only simplifies the operation, but also ensures the stability of the printing quality.
6.The automatic balance scraper can ensure the printing pressure is balanced.
7.The left and right emblem adjustment screen frame of the worktable can be adjusted left and right, up and down the emblem, with high printing precision, convenient and fast adjustment.
8.Imported pneumatic components are used to ensure the high quality of the machine.
Machine Details:
Fixtures For Fast Food Box & Cups:
Machine Parameters:

Glass Wine Bottle Screen Printing Machine - Machine Parameters
Model#:	ZT-400R-LG
Workbench Size:	400mm
Maximum Printing Size:	200mm * 350mm
Maximum Printed Product's Height:	110mm
Maximum Screen Frame Size:	300mm * 500mm
Machine Size:	850mm * 850mm * 1250mm
Machine Weight:	150KG
Power:	220V / 0.6KW
Air Source Requirement:	4-6BAR
Printing Speed:	800~1000 PCS/HOUR
Package Size(Wooden Box):	950mm*950mm*1400mm / 1.26CBM
Gross Weight:	180KG
Workbench Adjustment:	15mm
Printing Color:	Single Color (Could registered for multi-colors printing)
SUPPORT CUSTOMIZATION

Safety Performance Of Machine Operation:
ZT-400R-YC circular printing press is in line with the latest engineering style. If it is used as required, it is absolutely reliable.
In case of emergency, press the emergency switch immediately. Return to the starting position, when things are handled, turn the emergency switch, you can start safely and return to normal.
But in the following circumstances, there is still a risk!
(1) when the machine needs to be moved or repaired, the power supply and air source must be cut off.
(2) when adjusting or cleaning the oil scraper, follow the steps.
(3) enhance the awareness of fire prevention and provide fire-fighting equipment.

---
