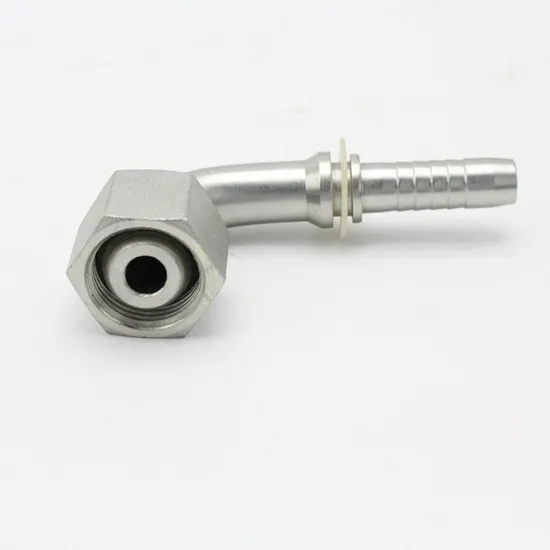

Metric Female Multiseal Female Hydraulic Hose Fittings

Product Description

Product Description Metric Female Multiseal Female Hydraulic Hose Fittings
Type:
Metric Female Multiseal 20111(T)
Material: carbon steel 45# with zinc plated (Cr +3)
stainless steel 304
stainless steel 316
Size: 3/16" to 2"
Hose: 1 or 2 textile, wire braided high pressure hydraulic hose. (20111)
4 wire spiral reinforced high pressure hydraulic hose. (20112)
Applications:
Hydraulic Hose Fitting is widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation and other industries.
Product Parameters Specification:
METRIC FEMALE MULTISEAL
20111 20111-T

Part No.	Thread E	Hose Bore		Dimensions
		DN	DASH	A	C	S2
20111-10-03	M10X1	5	03	18	2.5	14
20111-10-04	M10X1	6	04	18	2.5	14
20111-12-04	M12X1.5	6	04	18.5	4	17
20111-12-05	M12X1.5	8	06	18.5	4	17
20111-14-04	M14X1.5	6	04	19.5	4.5	19
20111-14-05	M14X1.5	8	05	19.5	4.5	19
20111-16-04	M16X1.5	6	04	19.5	4.5	22
20111-16-05	M16X1.5	8	05	20	4.5	22
20111-16-06	M16X1.5	10	06	20	4.5	22
20111-18-05T	M18X1.5	8	05	21.5	4	22
20111-18-06	M18X1.5	10	06	21.5	4	24
20111-18-08	M18X1.5	12	08	22	4	24
20111-20-06T	M20X1.5	10	06	20.5	5.5	24
20111-20-08	M20X1.5	12	08	23	5.5	27
20111-22-06T	M22X1.5	10	06	23	5	27
20111-22-08	M22X1.5	12	08	23.5	5	27
20111-22-10	M22X1.5	16	10	24.5	5	27
20111-24-08T	M24X1.5	12	08	22	5.5	30
20111-24-10	M24X1.5	16	08	26	5	30
20111-27-08DT	M27X1.5	12	08	23	5.5	32
20111-27-10DT	M27X1.5	16	10	26	5.5	32
20111-27-12D	M27X1.5	20	12	26	5.5	32
20111-27-10T	M27X2	16	10	26	7	32
20111-30-12D	M30X1.5	20	12	26.5	6	36
20111-30-12	M30X2	20	12	26.5	7	36
20111-36-12T	M36X2	20	12	26	7	41
20111-36-14T	M36X2	22	14	26	7	41
20111-39-14T	M39X2	22	14	28.5	7	46
20111-39-16T	M39X2	25	16	30	8.5	50
20111-42-16T	M42X2	25	16	29.5	7	46
20111-45-20T	M45X2	32	20	31.5	8.5	55
20111-52-20T	M52X2	32	20	33	9	60
20111-52-24T	M52X2	40	24	33	9	60
20111-64-32T	M64X2	50	32	35	14	75

Note: 1 for use with braided hoses, if use with spiral hoses, hose fitting series number is 20112-**-**.
Detailed Photos Other Hydraulic Fitting we produce:
Packaging & Shipping Packageing: Well packed by cartons and free fumigating wooden box.
Strong Packaging of Hydraulic Hose Fitting from PAISHUN
All fittings are with PVC plastic caps and plugs to protect against Dust.
All fittings are packed in good quality strong cartons ( 5 layers corrugated) with a plastic sheet inside for protection.
In order to guarantee that even in worst sea / maritime weather/transport conditions, the fittings shall arrive at the final destination in perfect condition without corrosion caused by sea salt and humidity.
Normal Measure:
Carton:24cm X 24cm X 16cm
Wooden box: 110cm X 85cm X 75cm
Usually 42 cartons can be packed in a wooden box.
Surely we can be customized the measure according to your request.
