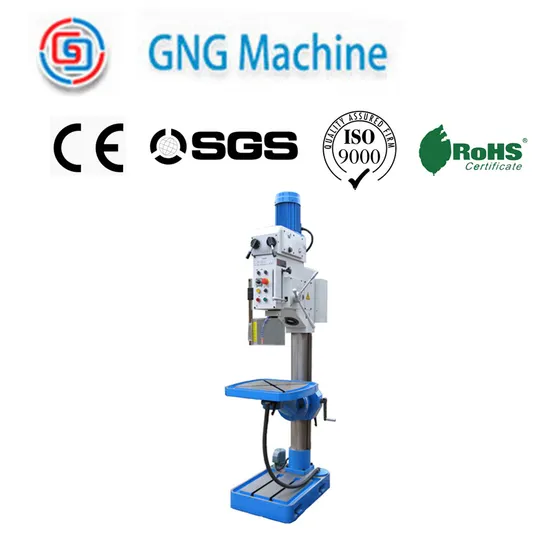

Electric High Precision Vertical Drilling Machine

Product Description

Min. Order Quantity: 10 Set/Sets
Supply Ability: 300 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: T/T
Quick Details
Condition: New
CNC or Not: Normal
Drilling Speed: 50-1450rpm
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: Z5040
M27(1.06"): 380V
Power(W): 750W
Dimension(L*W*H): 2270X690X1100mm
Weight: 465kgs
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: 2270X690X1100mm 465/615kg
Delivery Detail: 30-45days
Specifications
Z5040 bench drilling machine
2 speed strong power motor
Automatic tools ejectors
2 steps power feed 0.1-0.2mm/rev
Z5040 bench drilling machine
Specifications: Z5040(machinery power feed)/Z5040E(electronic power feed)
1. Max. Drilling capacity: 40mm
2. Threading in steel& cast iron: M20&M24
3. Spindle travel: 180mm
4. Spindle taper: MT#4
5. Spindle power feed: 2steps/0.1-0.2mm/rev
6. Spindle speed: 50-1450rpm
7. Width of T-slot: 18mm
8. Max. Distance from spindle axis to surface of column: 350mm
9. Max. Distance from spindle end to surface of table: 770mm
10. Max. Distance from spindle end to surface of bace: 1210mm
11. Table size: 560X560mm
12. Base size: 730X500mm
13. Motor power: 0.75/1.5KW
14. NW/GW: 465/615kg
15. Packing size: 2270X690X1100mm
Feature:
2 speed strong power motor
Automatic tools ejectors
2 steps power feed 0.1-0.2mm/rev
Drilling, tapping

Max. drilling capacity		40mm(1.57")
Max. tapping capacity		M27(1.06")
Max.travel of spindle		240mm(9.45")
Distance form spindle axis to generating line of column		360mm(14.17")
Max. distance from spindle nose to working surface of work table		600mm(23.62")
Max. distance from spindle nose to working surface of base plate		1200mm(47.24")
Max. adjustment of work table and table test		560mm(22.05")
Swivel of table		±45°
Spindle bore taper (Morse)		No.4
Spindle speed steps		12
Spindle speed		42-2050r.p.m
Feed steps		4
Feed range		0.10,0.20,0.30,0.40 mm/r
Effective working area of table		510×380mm2(20"×15")
Effective working area of base plate		450×440mm2(17.72"×17.32")
YD112M-4/2 3-phase two-speed A.C. motor	Power	2.2/2.8KW(3/3.8hp)
	Voltage	220,380,420,440,575V
	Speed	960/1440 r.p.m
AYB-6B 3-phase pump motor	Power	0.085KW(0.12hp)
	Voltage	220,380,420,440,575V
	Flow rate	6 L/min
Column diameter		160mm(6.3")
Overall dimensions(L×W×H)		1100×580×2380mm3(43.31"×22.83"×91.73")
Machine weight (Net weight/Gross weight)		690/750kg
Package dimensions(L×W×H)		110×67×212mm 16 SETS/20 Container

---
