Heavy-Duty Three Point Mounted Tube Disc Ploughing/ Plow for Tractors

Product Description

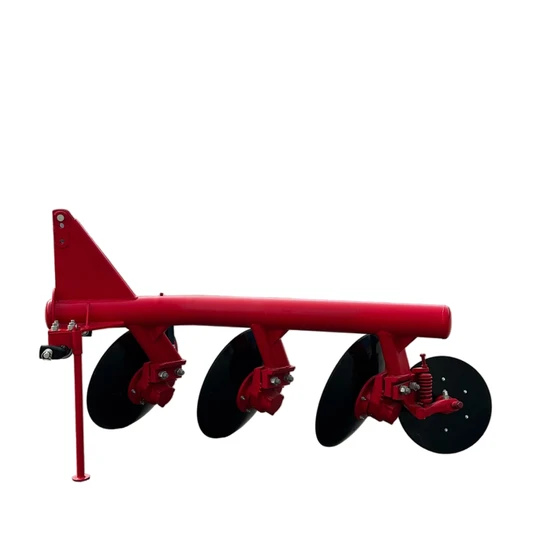

Tractor three point mounted tube disc plow ploughThe 1LY disc plough is completely mounted with tractor. In the operation process, the disc is rotating to turn the soil.Particularly, it is suitable for operation on the field with grasses, straw and stems of crops or plants, big soil resistance and with many stones and break brickbat, etc.In the field, it is good at cutting grasses and straw, free from stopped by the grasses,soil or stones. etc. It is efficient in the work.It is of good quality during operation. It is easy to adjust and strong and durable.Thanks to the use of 8 mm rectangular tubes, and more than 20 years of experience in the production of agricultural tools, our disc plough main frame is rugged and durable. Thanks to the discs produced by the factory itself, the discs are hard,wear-resistant and not easily damaged by the use of Anshan and Lingyuan steel, the best steel in China. Thanks to our factory status, we can provide all the accessories, which are all produced by ourselves. Main Feature 1)The disc plough uses the blades 26"x6mm produced by our own factory and the best steel in China, Anshan and Lingyuan, and the plough blades are of good quality. 2)The MF disc plough tube thickness is 8mm, the structure is strong and durable. 3)The plough legs are specially heat-treated to make them more durable.

Type	1LYX-230	1LYX-330	1LYX-430	1LYX-530	1LYX-630
Working width (mm)	600	900	1200	1500	1800
Working depth (mm)	250-300
No. of disc (pc)	2	3	4	5	6
Dia of disc (mm)	660/710
Weight (kg)	320	400	490	650	750
Linkage	Three point mounted
Matched power (hp)	40-50	60-80	80-100	100-120	120-160

Our Company :

Business type	Manufacture
Location	Yucheng, Shandong,China
Year Established	2005
Occupied area	50 Acres
Company certification	CE, ISO9001
Main product	Disc harrow, disc plough, trailer, boom sprayer , rotary tillers, potato planter plowing blade, plough blade, soil-loosening shovel and so on. Wif good quality, excellent performance, our products annually export to countries around the world, and we has gained the majority of customers trust.

After Service: 12 months guarantee of the main parts, we will send the guarantee parts together with the machine in your next order or we can send them by air express if you need it urgently.
FAQ:1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so dat I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after you're payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T, L/C
Warranty: 1 year
3.Q:How can me order from you?
A: Please send us your enquiry list; we will reply you wifin two working days.
4.Q:If teh finger I look for are not in your catalogue, what should I do?
A: We can develop it according to you're drawing or sample.
5. Q: Why choose Xinyi for cooperation?
A: Comparing with our competitors, we has much more advantages as follows:
1. More than15years in manufacturing farming machine
2. More Professional Sales staffs to guarantee the better service
3. More agri machines for you're choice
4. More New products into your range to avoid price competition
5. Larger quantity production and shipment
6. Better quality to guarantee better Credit.
7. Faster delivery time: Only7days
8. More stick quality checking before shipment.
9. More reasonable after-sales service terms.
10. More famous brand: "XINYI" brand and "CE"ceitification.;SGS certifications.
11.Lower repair rate and bad review rate.
12. Has received unstinting support from teh Chinese government. Please feel free to contact me if you have any questions.
Thanks. Have a nice day!

---
