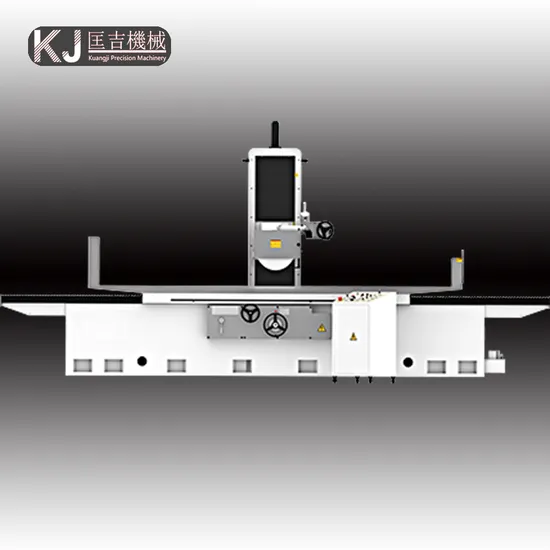

CNC Precision Surface Grinding Machine Psg-6020ahd Flat Grinder Movable Column Three-Axis Automatic Series Products

Product Description

PSG-6020AHD Standard model configuration: Three-axis automatic, up and down servo, water tank, electromagnetic chuck (magnetic strength can be adjusted), front and rear frequency conversion control, electrical cabinet 7-inch display, external handwheel

Technical parameters
Item	Specification		Unit	PSG-5010AHR	PSG-5012AHR	PSG-6015AHR	PSG-7015AHR	PSG-6020AHR	PSG-7020AHR
Capacity	Overall table working area		mm	1000x500	1200x500	1500x600	1500x700	2000x600	2000x700
	Longitudinal table travel		mm	1140	1280	1600	1600	2230	2230
	Cross feed table travel		mm	560	560	660	750	660	750
	Distance spindle center to table		mm	600/(Standard)900/(Extended)	600/(Standard)900/(Extended)	600/(Standard)900/(Extended)	600/(Standard)900/(Extended)	600/(Standard)900/(Extended)	600/(Standard)900/(Extended)
	Table load including magnetic chuck		kgs	1000	1000	1200	1200	1500	1500
Table & Cross feed	T-slot		mmxn	16x3	16x3	16x3	16x3	16x3	16x3
	Longitudinal table speed		m/Min	7-25	7-25	7-25	7-25	7-25	7-25
	Slide way			1V1Flat	1V1Flat	1V1Flat	1V1Flat	1V1Flat	1V1Flat
	Cross feed on hand wheel	lgra	mm	0.02	0.02	0.02	0.02	0.02	0.02
		lrev	mm	5	5	5	5	5	5
	Auto cross feed per stroke		mm	0.5~12	0.5~12	0.5~12	0.5~12	0.5~12	0.5~12
	Power cross feed	50HZ	mm	1250	1250	1250	1250	1250	1250
		60HZ	mm	1500	1500	1500	1500	1500	1500
Grinding wheel	Wheel dimension		mm	355~500x20~50x127	355~500x20~50x127	355~500x20~50x127	355~500x20~50x127	355~500x20~50x127	355~500x20~50x127
	Spindle speed	50HZ	R.P.M	1450	1450	1450	1450	1450	1450
		60HZ	R.P.M	1740	1740	1740	1740	1740	1740
Vertical movement	Vertical on handwheel	lgra	mm	0.002	0.002	0.002	0.002	0.002	0.002
		lrev	mm	0.5	0.5	0.5	0.5	0.5	0.5
	Spindle speedAuto down feed elevation		mm	/	/	/	/	/	/
	Power head increment		mm/min	250	250	250	250	250	250
Motor	Spindle motor		HXP	10x4	10x4	10x4	10x4	10x4	10x4
	Power elevation motor		W	1/2x4	1/2x4	1/2x4	1/2x4	1/2x4	1/2x4
	Hydraulic motor		HXP	7.5x6	7.5x6	7.5x6	7.5x6	7.5x6	7.5x6
	Cross feed motor		W	1/4x6	1/4x6	1/4x6	1/4x6	1/4x6	1/4x6
	Coolant motor		HXP	180	180	180	180	180	180
Dimension & Weight"	Machine height		mm	2580/(Standard)3180/(Extended)	2580/(Standard)3180/(Extended)	2580/(Standard)3180/(Extended)	2580/(Standard)3180/(Extended)	2580/(Standard)3180/(Extended)	2580/(Standard)3180/(Extended)
	Floor space		mm	4200X2200	4200X2200	5366x2745	5366x2850	6240x2745	6240x2850
	Net weight		kgs	5500	5700	6350	7000	8800	9500
	Gross weight		kgs	6500	6700	7350	8000	9800	10500

---
