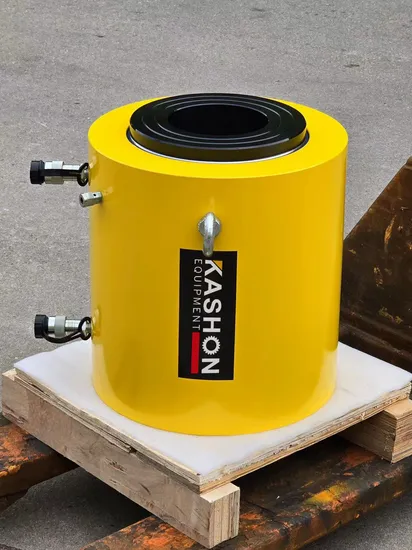

Rrh-3008 CE Certified 700bar 10000psi 300 Ton Double Acting Hollow Hydraulic Cylinder Jack with Center Hole

Product Description

CE certified 700bar 10000psi 300 Ton Double Acting Hollow Hydraulic Cylinder Jack with Center Hole Product Description
Features:
These double acting cylinders enable fast and controlled retraction;
The hollow rod design enables pulling and tensioning;
Threaded collars enable convenient placement; Coated with corrosive resistant baked enamel;All cylinders have a nickel-plated floating centre tube to increase their working life;Cylinder piston rod wiper reduces contamination, extending cylinder life;
Over-pressurisation is prevented due to built in safety valves.
Product Show
Product Parameters

Model	Cap. (ton)	Stroke B(mm)	Oil Capacity (cm3)		Collaps. Height A (mm)	OD D(mm)	Plunger Diameter F (mm)	Center Hole Diameter Y (mm)	Weight (KG)
			Push	Pull
KSRRH-307	30	178	829	541	330	114	63.5	33.3	21
KSRRH-3010		258	1202	784	431				27
KSRRH-603	60	89	733	482	247	159	91.9	53.8	28
KSRRH-606		166	1366	900	323				35
KSRRH-6010		257	2115	1393	438				45
KSRRH-1001	100	38	505	333	165	212	127	79.2	33
KSRRH-1003		76	1011	666	254				61
KSRRH-1006		153	2035	1337	342				79
KSRRH-10010		257	3420	2246	460				106
KSRRH-1508	150	203	4144	2083	349	247	152.4	79.2	111

Related Products

HYDRAULIC HAND PUMP
Model	KSP-84
Pump Type	Double acting and two speed
Oil Capacity	2200ml
Max. Working Pressure	700bar
Weight	12KGS

AIR HYDRAULIC FOOT PUMP
Model	KSP-450D
Pump Type	Double acting and two speed
Oil Capacity	4500ml
Max. Working Pressure	700bar
Weight	13KGS

Electric Hydraulic Pump
Model	KHE-4DM or larger
Power Supply	220V, 50/60Hz, 1PH or customized
Motor Power	1.1kw or larger
Oil Capacity	10L or larger
Flow	7L/min(1st stage), 0.8L/min(2nd stage) or larger

Application
Company Introduction
FAQ
Q1: What's the MOQ?
A1: MOQ is 1 piece.
Q2: How to make payment?
A2: Paypal, Western Union, Moneygram or T/T transfer.
Q3: How long does it take to process orders?
A3: It usually takes 10-14 business days to process most orders for no stock. If stock available, it will only take 2-3 business days.
Q4: What is the packing method?
A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.
Q5: How to ship?
A5: Sea freight, Air freight or International express (DHL, FEDEX, UPS...) all are available.
Q6: What is the warranty?
A6: 12 months against B/L date.

---
