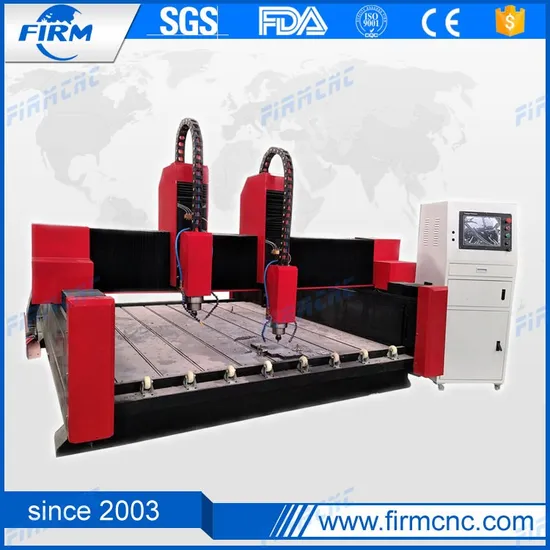

3D CNC Router Engraving Carving Machine for Stone and Marble

Product Description

3d CNC Router Engraving Carving Machine for Stone and Marble
Characteristics:
1. Lathe bed is of high quality by cast steel, after re-treatment, much stronger and more stable.
2. Powerful stepper motor driver, imported linear guide rails, running smoothly, high accuracy, long time service.
3. High precision pinion and rack transmission, , could engrave 1mm letter clearly.
4. Water cooling spindle (24000rpm), apply to long time processing of wood products.
5. Water cooling knife, when carve metal and stone use
6. Portal frame: Use aviation industry aluminum, long service time. Some factory choose aluminum tube, the cost is lower, but service time is short.
7. After choose heavy weight, portal frame: Squat sitting structure, when carve metal and stone more steady.
8. Aluminum table +PVC+ sink
9.4.5kw water cooling spindle
Techncial specification

NO.	Description	Parameter
1	X,Y,Z Working Area	1500* 3000* 200mm
2	Table Size	1500* 3000mm
3	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
4	X,Y,Z Repositioning Accuracy:	±0.02mm
5	Table Surface	Aluminium profile--welded thick steel Add water tank
6	Frame	Cast iron
7	X, Z Structure	High precision rack gear
8	Y Structure	Rail Linear Bearings o Ball Screw
9	Max. Rapid Travel Rate	20000mm/min
10	Max. Working Speed	10000mm/min
11	Spindle Power	3.0 kw water cooled spindle Equipped with water pipe
12	Spindle Speed	0-24000RPM/min
13	Drive Motors	Step motors
14	Drivers	Leadshine drives
15	Inverter	Best Inverter
16	Working Voltage	220V/ 380V three phase 50-60HZ
17	Command Language	G Code
18	Operating System	Mach3 controller (optional DSP or Ncstuido control)
19	Computer Interface	USB
20	Flash Memory	512M
21	Collet	ER20
22	X,Y Resolution	<0.01mm
23	Software Compatibility	ARTCAM/ Type3 software
24	Running Environment Temperature	0 - 45 Centigrade
25	Relative Humidity	30% - 75%
27	N.W.	1300KG
28	G.W.	1500KG

Application
Stone, marble, granite, Chinese black stone, bluestone, jade stone, crystal, glass, organic glass, Floor tile and ceramic tile, plastic,
chemical synthesis board, PVC board, bamboo ware, Aluminum-plastic panel, metal, etc., line carving, 2D engraving, 3D engraving, 3D relief, Cutting,
drilling, processing.
Our Services
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.
Packaging & Shipping
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information
Inner control system
1. In the process of production, our professional technical engineers inspect the process to ensure the quality of products.
2. Each link is strictly controlled to ensure the machine clean and beautiful.
3. 48 hours continuous working test before the machine leaving factory, ensure the high quality of each machine.
Every step strict test, make sure high precision, best quality
Company Information
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of cnc router appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on cnc router appliances.
FAQ
1.How to choose a suitable model ? processing materials? max cutting thickness?
2.Do you have operation manual and working video?
3.Does your company can processing my samples?
4.If I bought machine, but don't know how to operation, what I can do?
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
6.Does your engineer do aftersale service at abroad? how much cost?
