#V-PBS-C-6340

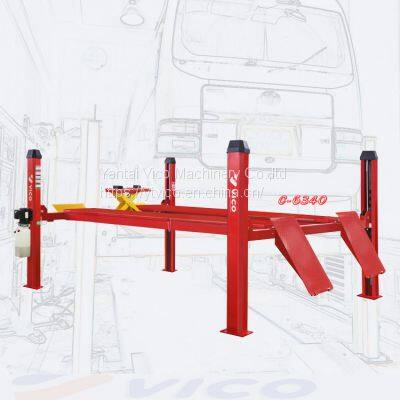

FOUR POST LIFT / WHEEL ALIGNMENT
(1) Adopt the electric release, manual and pneumatic release.
(2) Hydraulic power unit configuration throttling device, they can always adjust the rate of decline.
(3) Hydraulic cylinder drive, rope drive, quiet and smooth lifting.
(4) With wire control security lock, with a wire rope fracture protection, operation safety.
(5) Adopt electrical release, eight -point locking system, easy to operate.
(6) Can be locked in the desired height of operation, safety and reliability.
(7) Runway spacing is adjustable for different wheel base vehicle.
(8) With the second lift pulley, can adopt the manual release, pneumatic release and hydraulic
Detail Photos
Technical specification
Product name
| V-PBS-C-6340
|
Lifting Capacity
| 3500kg/4000kg/5000kg
|
Lifting Height
| (Main) 1500mm (Jack) 350mm
|
Min. Height
| 200mm
|
Lifting Time
| 50s-60s
|
Length Of The Platform
| 4200mm/4500mm/5000mm
|
Platform Width
| 550mm
|
Motor Power
| 2.2kw-380v or 2.2kw-220v
|
Oil Pressure Rating
| 24MPa
|
Air Pressure
| 0.6-0.8MPa
|
Weight
| 1200kg/1250kg/1350kg
|
Package
Export Standard Package
