2 in 1 Multipurpose Efficient Mini Drilling and Milling Machine Zx50c

Product Description

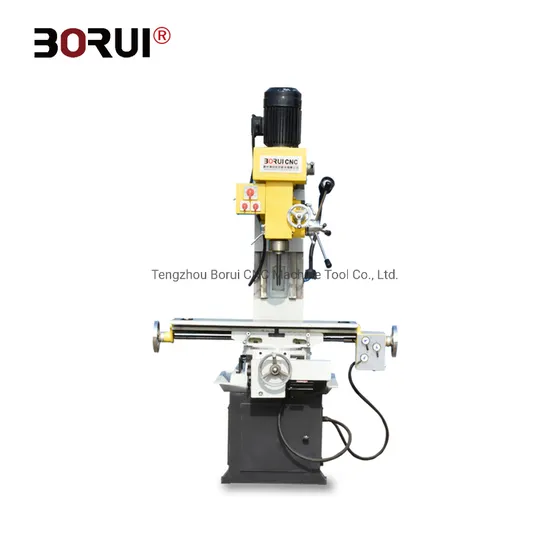

2 in 1 Multipurpose Efficient mini drilling and milling machine ZX50C
Product Description

Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
The main specification:

Specifications	ZX50A milling machine	ZX50C milling machine
Max. Drilling Dia. (mm)	50	50
Max. Horizontal Milling Dia.	100	100
Max. Vertical Milling Dia.	32	32
Max. Boring Dia.	100	100
Spindle Taper	MT4,R8	MT4,R8
Spindle Speeds Range	(5 step) 270-2400	(5 step) 115-1750
Spindle Travel	120	120
Table Size (mm)	800*240	800*240
Table Travel (mm)	400*230*380	400*230*380
Main Motor Power (KW)	1.5	0.85/1.5
N.W./G.W.(Kg)	460/540	470/550

Standard Configuration:
·Drill chuck
·Mill chuck
·Inner hexagon spanner
·Work light
·Spindle arbor
·Wrench

·Mchine vice
Optional configuration:
·DRO on X, Y, Z--AXIS
·Clamping kit
·Universal dividing head
·Rotary work table.
The main performance characteristics:
1.Milling head can be micro feed and achieve the drilling
2.The Vertical Milling Machine with Milling and tapping function
3.The universal milling machine Worktable can be equipped with the gear transmission power feed,
4.Full-featured and flexible
5.Easy to operate
6.The milling machine can be add plug and swivel table
7.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
8.Work Table Made by HT200-250 High Strength Cast Iron
9.Dovetail Table Guide ways Withstand Larger Overturning Moment
10.Gear Drive Milling Head
11.The milling Head stock Swivels ±45
Details Display

Packing shippingFor machine: usually by sea; For documents: by international express, eg. DHL,TNT or EMS.For packing :Free fumigation plywood packaging steel baseour service1. Technical support online service provided.2. Technical files service provided.3. Machine operation video provided4. On-site training service provided.5.Spare parts replacement and repair service provided.6 All of the questions will be replied within 8 hours7. If you need to develop products with your own specification, we can help you to work it out.8. Always be honest, never lie to customer, and never declare anything we don't have Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for exportTotal 2 manufacturing bases in chinaSino-germany technology cooperationProduction of 8 categories, more than 130 kinds of productsSet up design&research center at TAIWAN Exported to total 48 countries in the world covered most areasOne-stop shopping for nearly all other types' machine tools 1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
