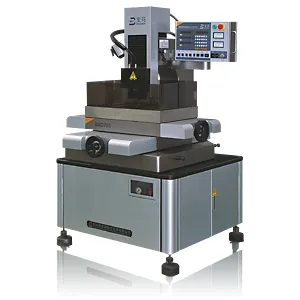

| Work table Size | 410 x 590 mm | Drilling Depth | 0 - 300 mm |
| Work Table Travel | 400 x 500 mm | Z axis Travel | 300+(320) mm |
| Load of Table | 300 Kg | Max. Drilling Speed | 60 mm/min |
| Electrode Diameter | 0.2-3.0 mm | Max. Working Current | 30 A |
| Water Tank Capacity | 30 L | Max. Power comsumption | 3.5 KVA |
| Machine Weight | 700 Kg | Voltage | 220-415V / 50HZ |
| Machine Dimensions | 1379 x 1429 x 1886 mm | Working Solution | Water/Saponification |
| Packing Dimensions | 1680 x 1730 x 2050 mm | Function of setting depth | Yes |
| Control Type | ZNC: Z axis NC Control | Z axis Travel Control | Electric Motor |
| Why choose Suzhou Baoma | |
| Compare Item | SUZHOU BAOMA |
| 1.casting | HT250 from STK (Japanese), 2 times heat treatment. Good rigidity can keep the accuracy for more than 8-10 years. |
| 2.Linear guide way | Linear guide way from TAIWAN |
| 3.Inverter | MITSUBISHI INVETER (JAPAN) |
| 4.CONTACTORS | World Top 500 Brand |
| 5.Higher Frequency module | USA AND JAPAN, we have patent for new designed HIGH frequency system, which max cutting speed can reach |
| 120-150mm2/min. BMW-5000 can reach 210mm2/min | |
| 6.AC SERVO MOTOR and Drives( FOR BM seriesmachine)DK Series with no-resistor drive system | MITSUBISHI JAPAN AC servo motors and drives. For long time running the machine, there is less heat generated. Very good for machine using life. |
| 7.Controller | BMW-5000 latest control cabinet, No-welding designed, all connections connected by screws, can be used for long time. |
| 8. Control computer | Industrial computer, with 120G SSG, With WINDOWS XP system. which is more stable for long time working. |
| 9. Control system | Real BMXP system, (not copy Autocut), which can use AutoCAD directly. No need change the program to G code. With database |
| function easy to operate. Cancelled the MAIN FUNCTION BOARDS, All functions directly from computer to control machine,which reduced around 85% faulty of machine. | |
| 10. All metal sheets | AN'GANG STEEL |
| 11.Wire tension system | Double directly Auto wire tensions system, can reduce the wearing of wire, and improve the accuracy and roughness of the machine |
| 12. R&D | More than 20 R&D engineers & keep improving our machine and leader in Wire cut machine. |
| 13.Experiences | Start before 2000, with more than 20years experiences on molybdenum wire cut machine ( not brass wire cut machine) |
| 14. Sales | Every year sold more than 2000units machines, exported to more than 60 countries. Totally, installed around 52000units machines. |
| 15.scale | More than 50,000M2 facotries,300workers |
| 16.Honor and certificate | More than 47national patents and 5 golden prizes, more than 20 awards, CE certificate from EU, ISO14001,ISO900,first class |
| exporting license. | |
