Citrus Apple Mango Nectarine Orange Avocado Fruit Washing Drying Waxing Sorting Processing Machine

Product Description

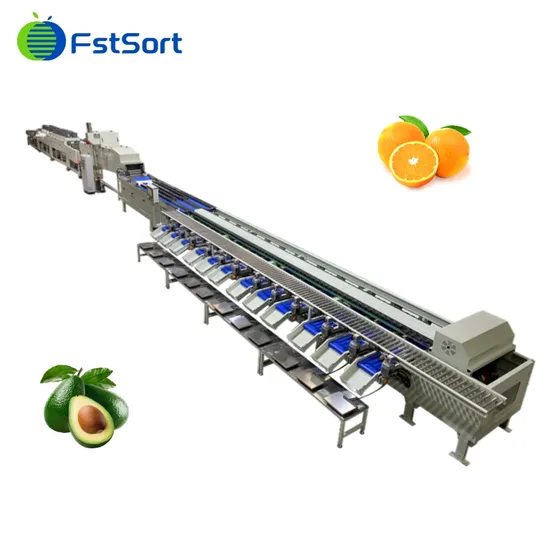

Avocado Washing Drying Sorting Line
Product Description
This avocado processing line consists of a bubble washing tank with roller elevator, brushing machine with high pressure water sprayers, air drying machine,two lane electronic weight sorting machine and central controller.
Material contacting product and water is stainless steel 304, other frame is painted steel.
Options
Waxing and hot air dryer before sorter
Exits at one side or two sides
Packing tables at exits
Know more about avocado washing drying waxing grading line
Specification

Model	FIAS-8000
Capacity	50000 pcs/h
Lanes	2
Sizes/exits	12
Quantity of brushes	50 pieces
Brush Material	Nylon
Quantity of air dryers	10
Dimension	25780*1730*1700mm
Power	15.6kW, 380V, 50Hz
Water Consumption	Average 5 tones/hr

Avocado Washing Drying Waxing Sorting Line
Product description
The equipment consists of the bubble washing machine, brushing machine with sprayers, blowers, waxing machine, hot air dryer, electronic weight sorting and Central controller. It can be used for fruit washing waxing grading.
Features Large capacity, continuous processing Low noise, perfect drying effect. Fruit after washing, waxing, grading machining, beautiful shiny appearance. Weight grader is high precision and widely application Packing station after sorter is designed for easier packing in boxes. Various speed. Central controlling through power box and PLC panel. Whole line can be placed with either straight shape or L shape. Specification

Model	FIAX-8000A	FIAX-8000B
Capacity	25000 pcs/h	50000 pcs/h
Sizes/exits	9 exits	12 exits
Quantity of brushes	50bruses for cleaning 14brushes for waxing	50bruses for cleaning 14brushes for waxing
Brush Material	Nylon	Nylon
Air blowers	10pcs	10pcs
Inner width	600mm	1000mm
Dimension	34650*1100*1700mm	34020*1230*1610mm
Power	16.1kW, 380V, 50Hz	20.5kW, 380V, 50Hz
Weight sorter	One lane	Two lanes

FAQ
1. Q: How much wax it uses?
A: Wax consumption: 30L per hour (calculated according to the spraying for 3 seconds and the stopping for 5 seconds, you can change the speed) 2. Q: They say 1kg of wax is enough for 1 ton of fruits.. correct?
A: Yes, in real working situation, its less. 3. Q: How much water consumption?
A: Water tank capacity: 2.45 cubic meters
Spray water consumption: 1.5 tons per hour (with 2 pipes 6 nozzles) 4. Q: How long is the warranty?
A: All machines come with a one-year warranty from date of installation.
5. Q: Do you have people for installation and start up for the machine?
A: Photos, videos and instructions will be sent to the customer to aid installation and operation of the machinery. If the customer requires additional assistance, an engineer can be sent from China.
6. Q: What assistance can you provide in installation&operation?
A: Yes We will provide assistance anytime you need, normally we provide video and manual for operation/installation, then we will create a group for your engineer and our engineer so you can ask questions anytime.
7. Q: Production time? Or do you have in stock?
A: Because the production line is customized, we don't have stock, and normally the production time is about 20~30 working days depend on the functions.

---
