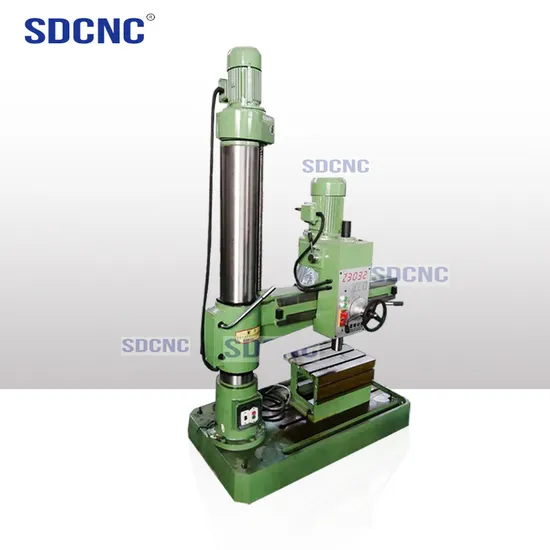

Z3032 CNC Manual Electric Lifting Gearbox Pump Motor Gear Core Construction Drilling Machine

Product Description

SPECIFICATIONS
The main performance characteristics: 1. The spindle box splint is an iron plug device, which can adjust the gap and has good drilling accuracy.
2. At the place where the spindle feeds into the worm gear, the oil can is convenient for lubrication.
3. The rocker rail is protected by manganese steel belts, and the real name is used for long-lasting and no wear.
4. The base and worktable are finely ground and processed with aging treatment, which is firm and stable.
5. Spindle drilling three-level speed automatic feed; the hand wheel is a smooth bakelite hand wheel, comfortable to grasp,
flexible left and right movement.

Datas	Z3032×10
Max. Drilling diameter mm	Steel Φ32 iron Φ32
tensile strength Mpa	500-600
Column diameter mm	200
Distance between spindle centerline and column mm	200-910
Horizontal moving distance of spindle box mm	710
Distance from Spindle nose to base surface mm	330-1060
Rocker arm lift distance mm	730
Spindle travel mm	120
Spindle taper	Morse 4
Spindle speeds r/min	108 162 262 398 665 1000
Spindle feeder mm/r	0.10 0.16 0.25
maximum feed resistance of Spindle allows N	5300
Rocker arm lifting speed m/min	1.21
Swing angle of rocker arm (°)	+ 180
Spindle motor power KW	1.5/2.2
Liftting motor KW	0.55
Coolant power KW	0.04
Net weight kg	1080
Machine size mm	1400×660×2060

our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it
out.

---
