Efficient TM: Ylf Crystal with Linearly Polarized Laser Output

Product Description

Products Description

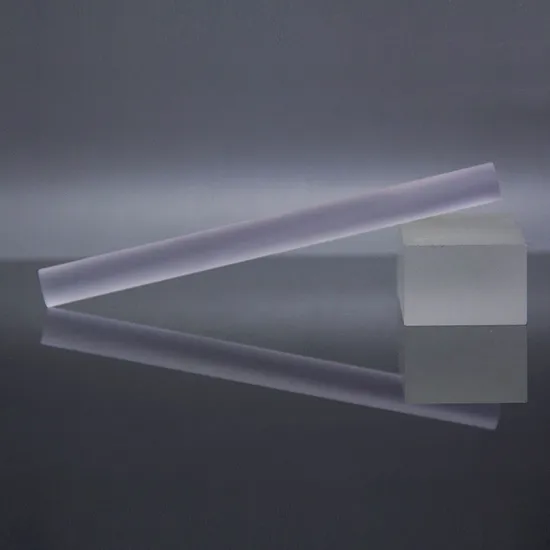

Tm:YLF Tm: YLF crystal is a negative uniaxial crystal with a negative temperature coefficient of refractive index, which can offset part of thermal distortion, so the output beam quality is high. The pumping wavelength is 792nm, and the linearly polarized laser light of 1.9μm is output in the a-axis direction. The c-axis output is non-linearly polarized light. Selecting the appropriate crystal size and doping concentration can obtain high-power laser output, and it is an important pump source laser crystal for mid-wave infrared lasers. Main features: Linearly polarized laser output The thermal effect of laser operation is small Cross relaxation Efficient Suitable for diode pumped
Product Parameters

Crystal structure	Tetragonal
Melting point	825°C
Moh's hardness	4-5
Density	3.95g/ cm3
Thermal conductivity	0.06W/cm/K
Young's modulus	7.5×10 11 dynes cm -2
Tensile strength	3.3×10 8 dynes cm -2
Coefficient of thermal expansion	[100] Direction: 13×10 -6 /K
		[001] Direction: 8×10 -6 /K

Doping concentration	0~5at% Can be customized according to customer requirements
Orientation	[100] or [001], ± 5°
Wavefront distortion	≤0.25λ/25mm @632.8nm
Crystal rod size	Diameter: 3~9.5mm, Length: 5~120mm Can be customized according to customer requirements (round rod or plank)
Dimensional tolerance	Diameter: +0.00/-0.05mm, Length: ± 0.5mm
Cylindrical processing	Grinding or Polishing
Parallelism of end faces	≤10"
Perpendicularity between end face and rod axis	≤5′
Flatness of end face	≤λ/10@632.8nm
Surface Quality	10-5 (MIL-O-13830A)
Chamfer	0.15±0.05mm
AR Coating Reflectance	≤0.25%

Company Profile

Shanghai Opticrystal Materials Co., Ltd was established in 2014 , mainly engaged in the R&D, processing and sales of optical crystals, electronic and semiconductor materials, as well as laboratory equipment, spare parts, consumables and other products. With a professional R&D, processing and sales team. Our products have been widely sold and used in laser processing, new energy vehicles, photovoltaics, optical communications, aerospace, ships, nuclear detection, medical beauty, consumer electronics, electricity, Environmental protection, scientific research and other fields, the products are exported to Europe, America and Southeast Asia and other regions.
Why Choose Us
FAQ 1. Who are we?
We are based in Shanghai, China, and the company started from 2014. Products have been sold to Europe (30.00%), North America(30.00%), South America(20.00%) and East Asia (20%).There are total about 35 employees in our company. 2. How can we guarantee quality?
With over 10 years manufacturing experience and strict quality control system, the products quality is ensured. Also samples are available before mass production; Always final Inspection before shipment.
3.What can you buy from us? . Optical Crystals :
Laser crystals: Nd:YAG, Cr4+:YAG, Yb:YAG, Tm:YAP, Ho:YAG , Ho:YAP, Er:YAG, Er: glass, Nd:YLF, Nd:YVO4, Ti3+:Al2O3 and bonded crystals. Scintillation crystals: Ce:LuAG, Ce:GAGG, Ce:YAG.
Piezoelectric crystals: BaTiO3, Quartz, (PMN-PT), LiTaO3, LiNbO3,LGS.
Magneto-optic crystals: TGG, TSAG,TLF, KTF, CeF3, YIG.
Acousto-optic crystal: TeO2. Birefringent crystals: YVO4, α-BBO.
Nonlinear crystals: β-BBO, KDP, DKDP, LBO, KTP, PPLN. Metal Single crystals: Al, Cu, Mg, Ni.
Single crystal substrates: Al2O3, GGG/NGG/SGGG,LSAT, LaAIO3, MgO, MgAl2O4, SrTiO3, YSZ, TiO2.
Gemstones: Ruby, Sapphire, Emerald.
. Precision Optics:
Optical windows, filters, lenses, prisms, objective lenses, cylindrical mirrors, mirrors, beam combiners, beam expanders,
wedge mirrors, glued mirrors, etc.; materials include BK7, K9, quartz glass, sapphire, silicon Si , Germanium Ge, zinc selenide ZnSe, calcium fluoride CaF2, magnesium fluoride MgF2, barium fluoride BaF2, zinc sulfide ZnS and so on.
. Optical Devices:
Photoelectric Pockels Cell: BBO, KDP, DKDP, LN/MgO:LN, LGS, KTP, RTP. Faraday Optical Isolators: Polarization-independent isolator, polarization-dependent isolator, near-infrared visible light free-space isolator, in-line isolator, circulator, etc.
Optical Modulators: lithium niobate phase modulators, fiber-coupled acousto-optic modulators, spatial acousto-optic
modulators, acousto-optic Q switches, acousto-optic filters, acousto-optic deflectors, and acousto-optic drivers.
Special Optical Fiber:
special silica optical fiber, single optical fiber, optical fiber bundle, optical fiber passer, optical fiber collimator.
. Semiconductor Materials:
Quartz, diamond, GaAs, Si, Ge, ZnO, AlN, GaN, GaO, SiC, LiTaO3, LiNbO3, etc.
Ceramic Substrates: Si3N4, Al2O3, AlN, ZrO2.
Sputtering targets: single crystal target, metal target, alloy target, ceramic target, compound target, rare earth target.
. Laboratory equipment and consumables:
Optical platforms, translation stages, mirror frames, teaching experiment modules, spectrometers, power meters, lasers, pulsed
xenon lamps, scientific research electric furnaces, performance testing equipment, consumables, etc.
4. What services can we provide?
Free samples
Customization
24hours online service.
After sales service
