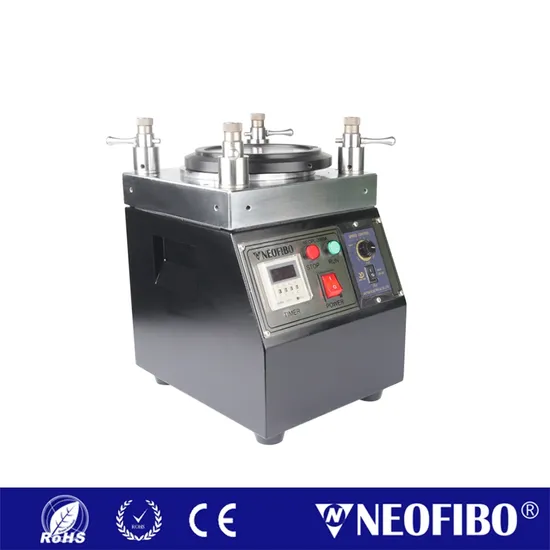

Neopl-2000A Fiber Grinding Machine Polishing Equipment for Fiber Optics Patch Cord Making Machine Fiber Polisher Grinder Advanced Fiber Optic Polishing Machine

Product Description

NEOFIBO NEOPL-2000A Patch Cord Making Machine Fiber Optic Polishing Grinding Machine Single Core Fiber Polishing Solution Neofibo : Your Reliable Supplier
* Can provide you with reliable polishing solution * 17+ year Manufacturing Experience for OEM/ODM polishing program * Independent research and development patent - Neoholder® * Products have CE, ISO 9001, ROHS certification * Support online video synchronization inspection machine * Equipment test report and operation guide can be provided * SGS certified factory, delivery speed and secure,50 units in stock * 30 days quality problems can be returned Products Description
Product Description: > NEOPL-2000A is a foursquare polishing machine. The polishing fixture size is 174mm x 174mm, and it is designed to polish the volume fiber connector. > Most of the local factories in China use this type machine, and the overseas repurchase rate for NEOPL-2000A is increasing year by year. Thousands of worldwide end users prove that NEOPL-2000A polishing machine is reliable and cost-effective equipment.
Key Features: > CE certified product from Neofibo; > Four column pressure is applied to the foursquare fiber polishing fixture; > Single motor drive,3010B optional; > Applicable to the end-face polishing of UPC & APC of various connectors; > High precision machining ensures equipment precision; > Special heat treatment process guarantee equipment durability; > Collocating Neofibo's high precision polishing fixture to get better polishing effect; > Provide non-standard polishing fixture design and customized services.

Machine Size	L 240(mm) × W 240(mm) × H 260(mm)
O.D. of Rotation Plate	127 mm5 inch
Time Settings	99 min 99 sec (Max)
Speed for Rotation Plate	90 rpm
Height of Plate Jumpiness	<10 um
Pressure Configuration	21 ~ 36 N/cm2
Work Temperature	10 ~ 40 Celsius degrees
Relative Humidity	15%~85%
Noice	unloading Less 50 dB
Libration	Working Status 0.25g 5~100Hz 10min
Stopping Status	0.50g 5~100Hz 10min
Power Input	220230 VAC 50Hz/60Hz
Electric Power	40W/60W
Net Weight	28kg

Click Here And View More >>>Go
Polished Material specification for NEOPL-2000A polisher:

No	Material	Type	Remark
1	ZrO2 Ceramic Ferrules	φ2.5mm, φ2.0mm, φ1.25mm	PCAPC
2	Quartz capillary	φ1.8mm	Plane, inclined plane and spherical surface
3	Glass materials	φ1.0mm, φ10.0mm
4	Stainless steel and titanium alloy	φ3.0mm, φ2.5mm
5	Colophony material	MT-RJ, MPO, MPT etc

Remark User should use the recommended polishing liquid and polishing films for NEOPL-2000A polisher. We could not ensure the polishing quality meet user's requirements if other types of polishing liquid and films were used.
To know more products, please check quick links below connected to our homepage. Feel free to contact us.

Fiber Polishing Machine	Fiber Polishing Fixture	Fiber Production Line Equipment	PM Fiber Alignment Systerm	Fiber Polishing Consumable
Fiber Cleaning Solution	Optical Power Meter	Fiber Tool	Fiber Optic Connectors and Apater	Indoor Cables

Helpful Links
For instant communication, please click hereFor our catalogs, please click hereFor our home page, please click here
If you can't find a fixture suitable for you, please contact the supplier, we have professional staff to provide you with services. Application
> Mainly used for polishing fiber optic connector, patchcord, ferrule end face; > Or non-standard materials like metal, glass, ceramic end face polishing; > Or precision parts end face polishing.
Polishing Effect
Contact Us >>>Go
About Us Shenzhen Neofibo Technology Limited
We have 17+ years experience. We could provide optic fiber production line and service for you. you can count on us to offer you the best solution.Neofibo is focusing on the field of fiber optic polishing solutions.We specialize in manufacturing fiber optic polishing machine, design various optical fiber connectors polishing fixtures, provide completed polishing process and materials for all kinds of fiber optic connectors.Neofibo can provide not only products, but also technical services and R & D support.
FAQ
1.About the fixture of NEOPL-2000A, does it works perfect with the Seikoh Giken 550 fiber optic polishing machine ? Yes, we confirm that it works perfect with the Seikoh Giken 550.
2.Polisher can't work?
(1)Confirm power, and examine speed adjusting knob.
(2)Whether the timer stop at ZERO.
(3)Whether fuse is OK or not.
3.Polished ferrules could not reach required shape or quality.
(1)Film is used over 40 times.
(2)Water doesn't be used.
(3)Films are not cleaned completely.
(4)Ferrules and jig are not fixed correctly.
(5)The distance adjustment between screw top and Plane A is not correct.
4.Bad quality for the polished surface.
(1)Film is used over 40 times.
(2)Polishing liquid is not used.
(3)Film is dirty.
(4)Ferrules are not cleaned completely.
(5)Scraped by film when pulling out the ferrules.
5.How can we guarantee quality?
(1)Always a pre-production sample before mass production;
(2)Always final Inspection before shipment;
6.what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese Please contact us if you have any questions or needs.

---
